British Style Platform Lift

Description

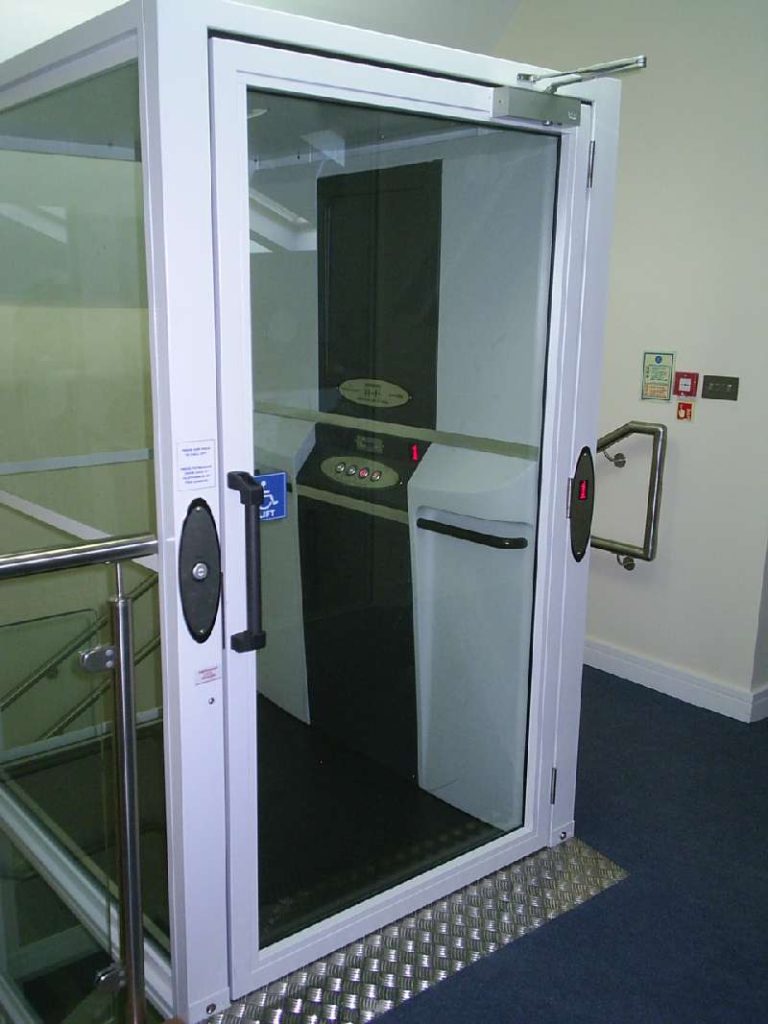

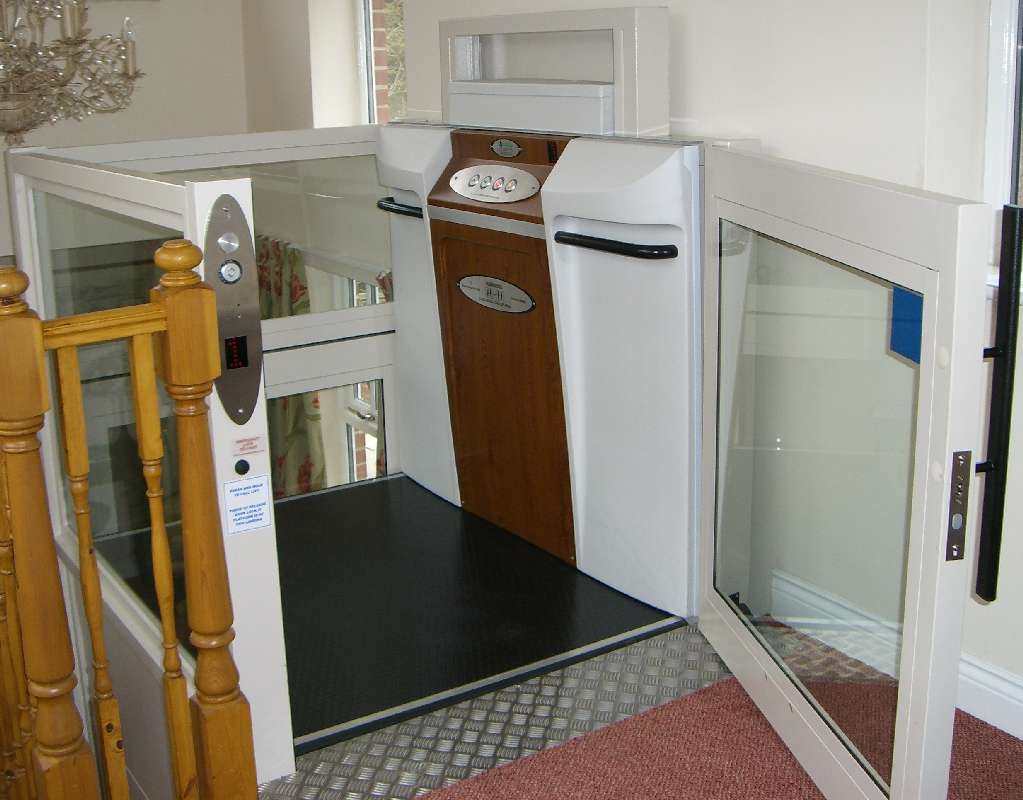

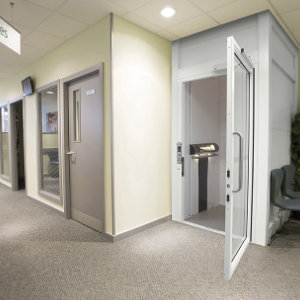

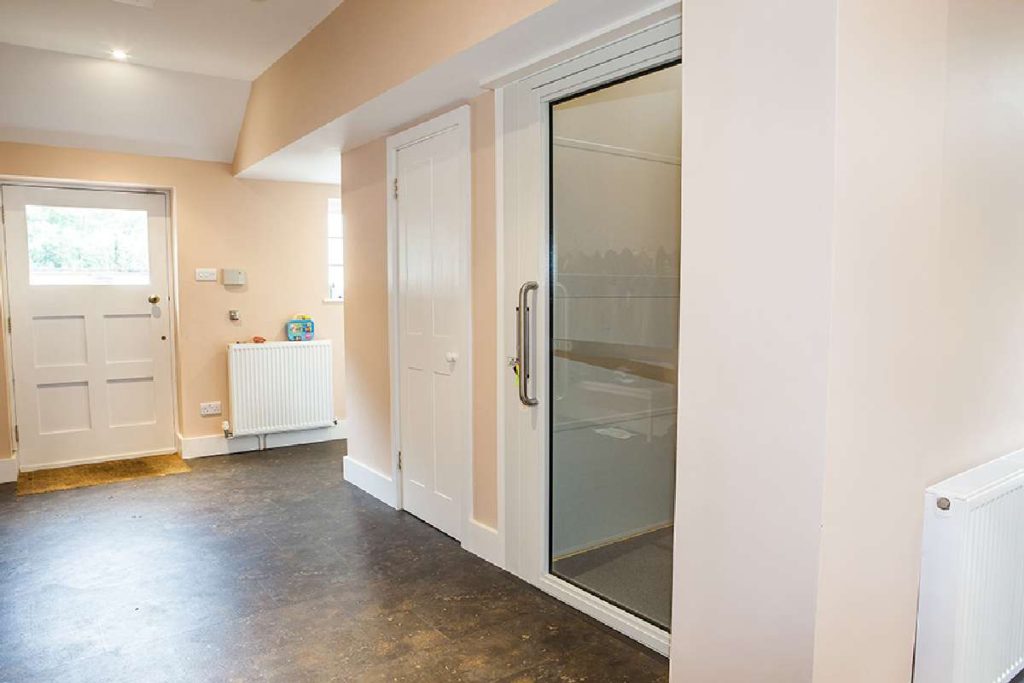

With its ultra-reliable hydraulic drive and rigid construction, the Lyndhurst has always been a popular choice, regardless of setting. This vertical platform lift can travel up to 7 metres (5 stops) and comes complete with its own self-supporting structure. As well as an array of finishes, we offer a choice of door types (including powered centre opening), glazing in the structure and audible / visual displays. We are also able to manufacture bespoke platform sizes, meaning that we can slot the lift into the tightest of spaces.

British Style Platform Lift

Technical Details

ApplicationIndoors & Outdoors
Maximum Travel7m / 5 stops
Minimum Platform Size700mm x 1100mm (not Part M compliant)
Maximum Platform Size1100mm x 1400mm
Rated load400kg (5 person)
Pit Depth70 - 85mm (or ramp can be supplied
Travel Speed0.08 - 0.15m/sec
HeadroomDependent Upon Travel Height
Entrance Configuration(s)Same Side / Through Access / Adjacent Entry
Door Type(s)Single Swing (panoramic or fire rated) / Centre Opening
Flooring Type(s)Non Slip Vinyl / Rubber
Lift Colours / FinishesWhite as standard or a RAL colour of your choice
Internal FinishesN/A
Fixing Method(s)Self-supporting Structure
Power Supply Requirement220v Single Phase
ConformityEuropean Machinery Directive
Country of ManufactureGreat Britain
