Description

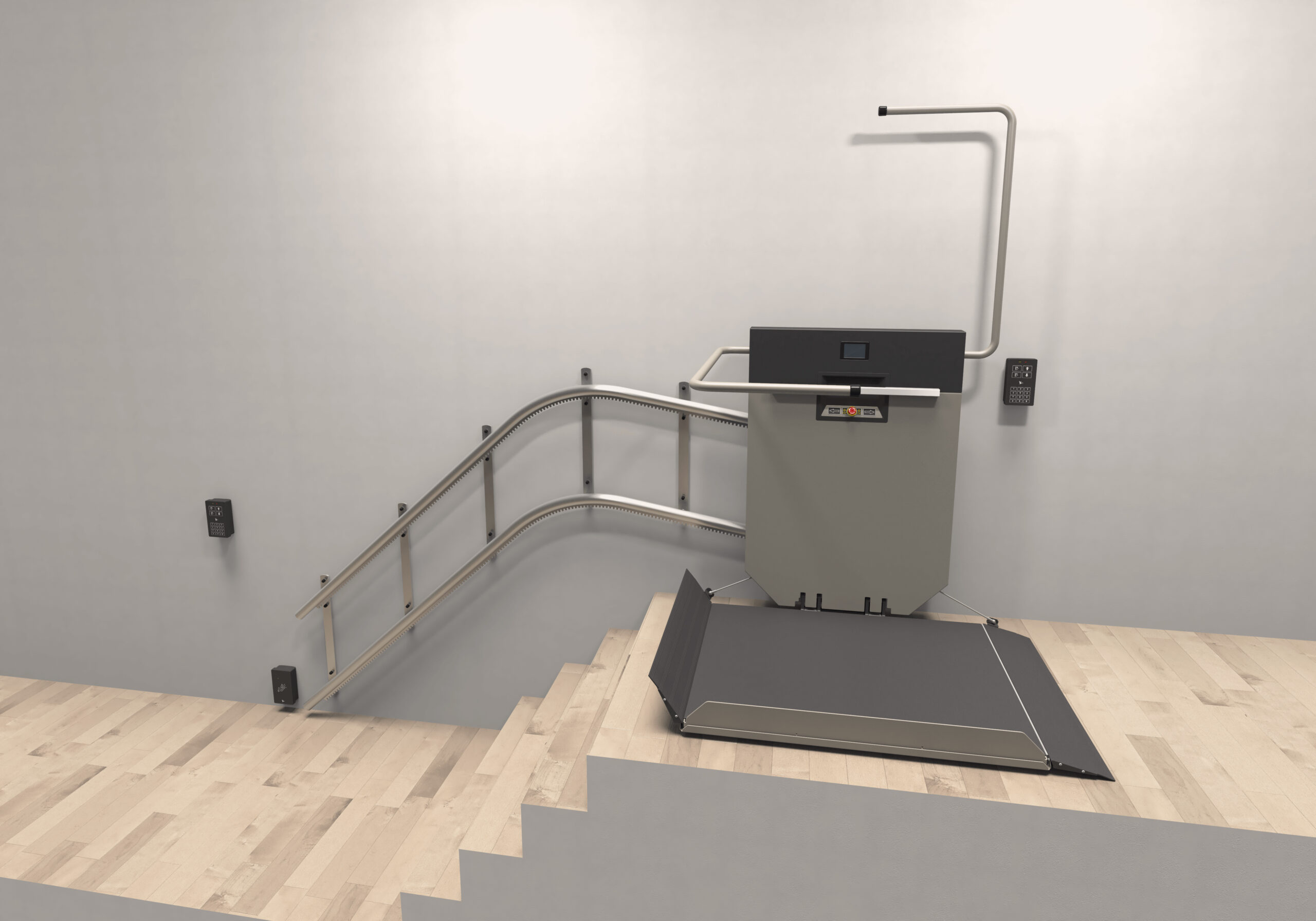

Meet the most versatile platform stairlift available today. GTLE can be fitted to either straight or curved staircases, indoors or outdoors. Its ultra-slim design not only looks great but means that it can cope with the narrowest of stairs. GTLE is equipped with all of the most up-to-date features as standard, such as a powered folding platform and barrier arms (which fold downwards), a graphical user display, and full battery drive ensuring that the lift can still operate in the event of a power cut. The wall buttons are wireless and the optional handheld remote control buttons can be wireless or wired depending on your preference.

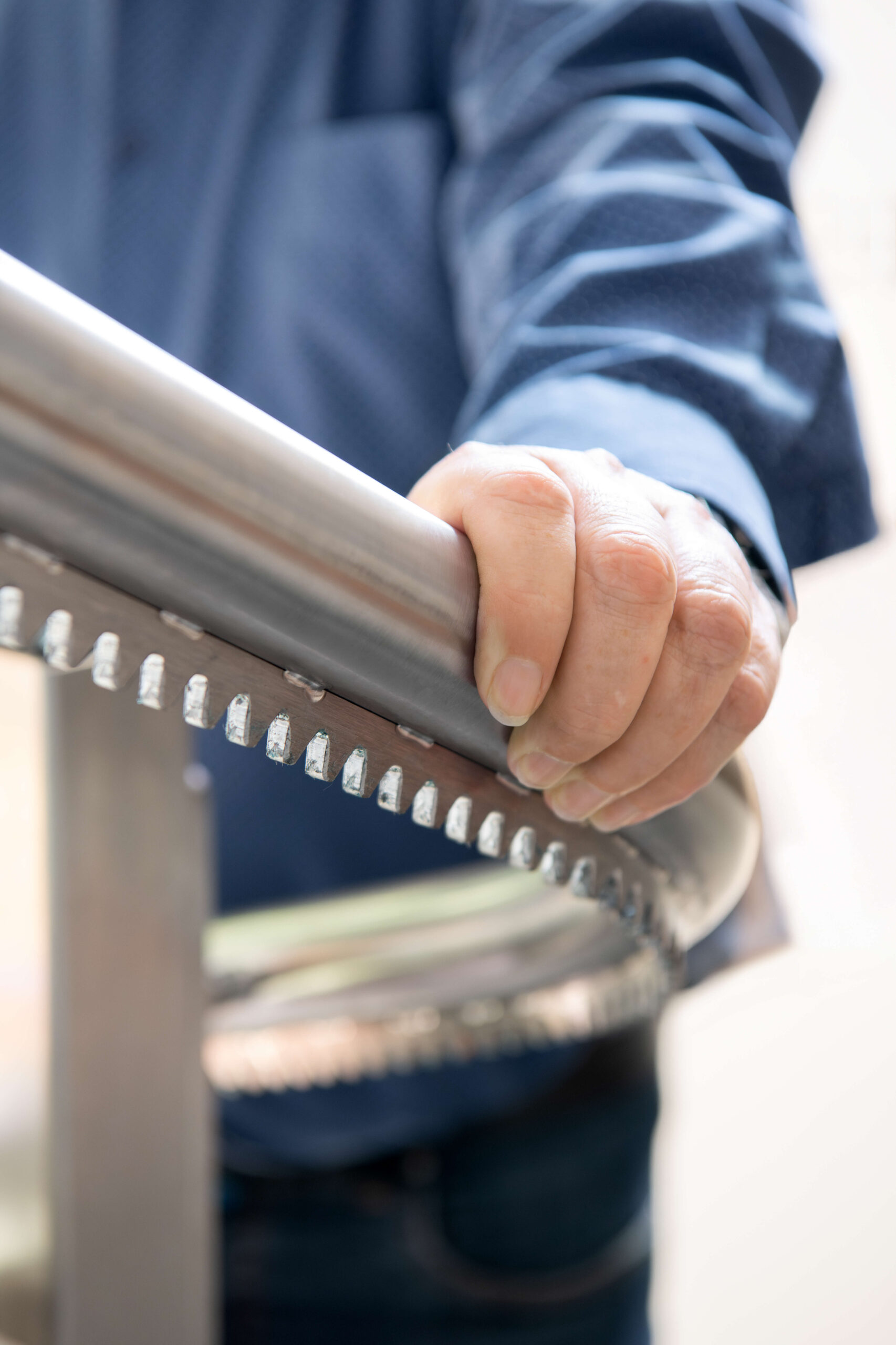

Style and Safety: The lift rails are stainless steel, and the top rail can be used as a handrail. The directional buttons on the lift are tactile and soft touch, while the platform and ramps provide added reassurance thanks to their non-slip surfaces. Barrier arms automatically surround the user. GTLE can carry a maximum of 300kg as standard.

Corrosive Environment: Live near the sea or need access within a swimming pool environment? No problem, GTLE can be supplied with a marine specification upgrade.

Space Saving: GTLE is ultra slim, in fact, it is only 240mm wide (if fixed directly to the wall) when the platform is folded up, leaving the rest of the stairs free for pedestrians.

StepRiser

Technical Details

Environment Indoors & Outdoors
ApplicationStraight & Curved Staircases
Standard Platform Sizes800mm x 1250mm (Part M Compliant) / 800mm x 1000mm (not Part M Compliant)
Non-standard Platform Sizes22 other platform sizes to suit available space
Rated Load300kg
Travel Speed0.15m/sec Max
Entrance ConfigurationThrough Access / Adjacent Entrance
Platform ProtectionAutomatic safety arm and mechanical wheel-stop (ramps)
Lift Colours / FinishesAnthracite Grey RAL 7016 & Pearl Mouse Grey RAL7048 (standard) or Special RAL colour of your choice (optional)
Platform FlooringNon-slip (Anthracite Grey RAL 7016)
Rail MaterialStainless Steel
Fixing Method(s)Wall Fastened or Stanchion (post) Mounted

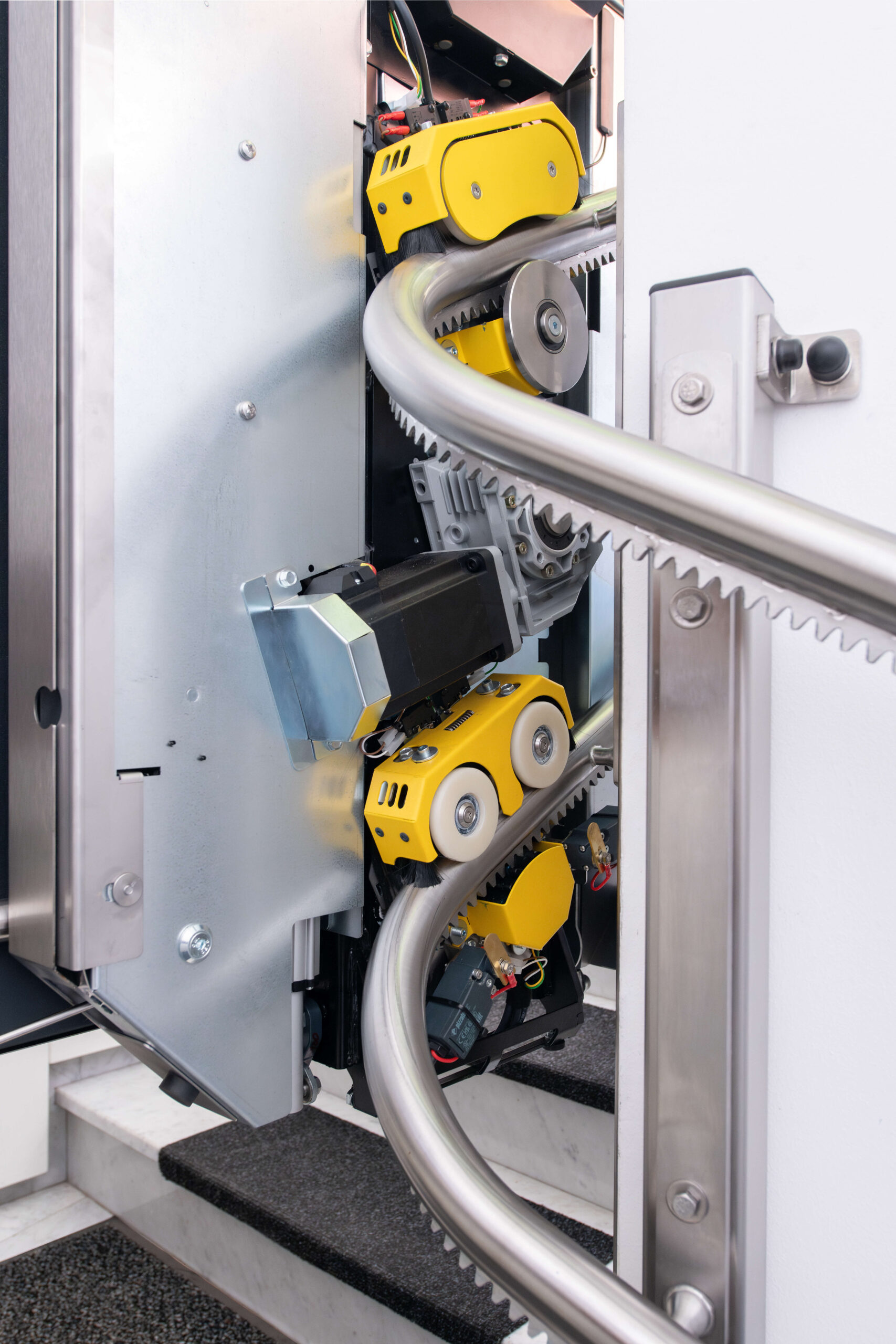

Drive MethodRack & Pinion
Gradient20 - 50 degrees
Power Supply Requirement220v Single Phase
ConformityEuropean Machinery Directive
Country of ManufactureAustria
