Description

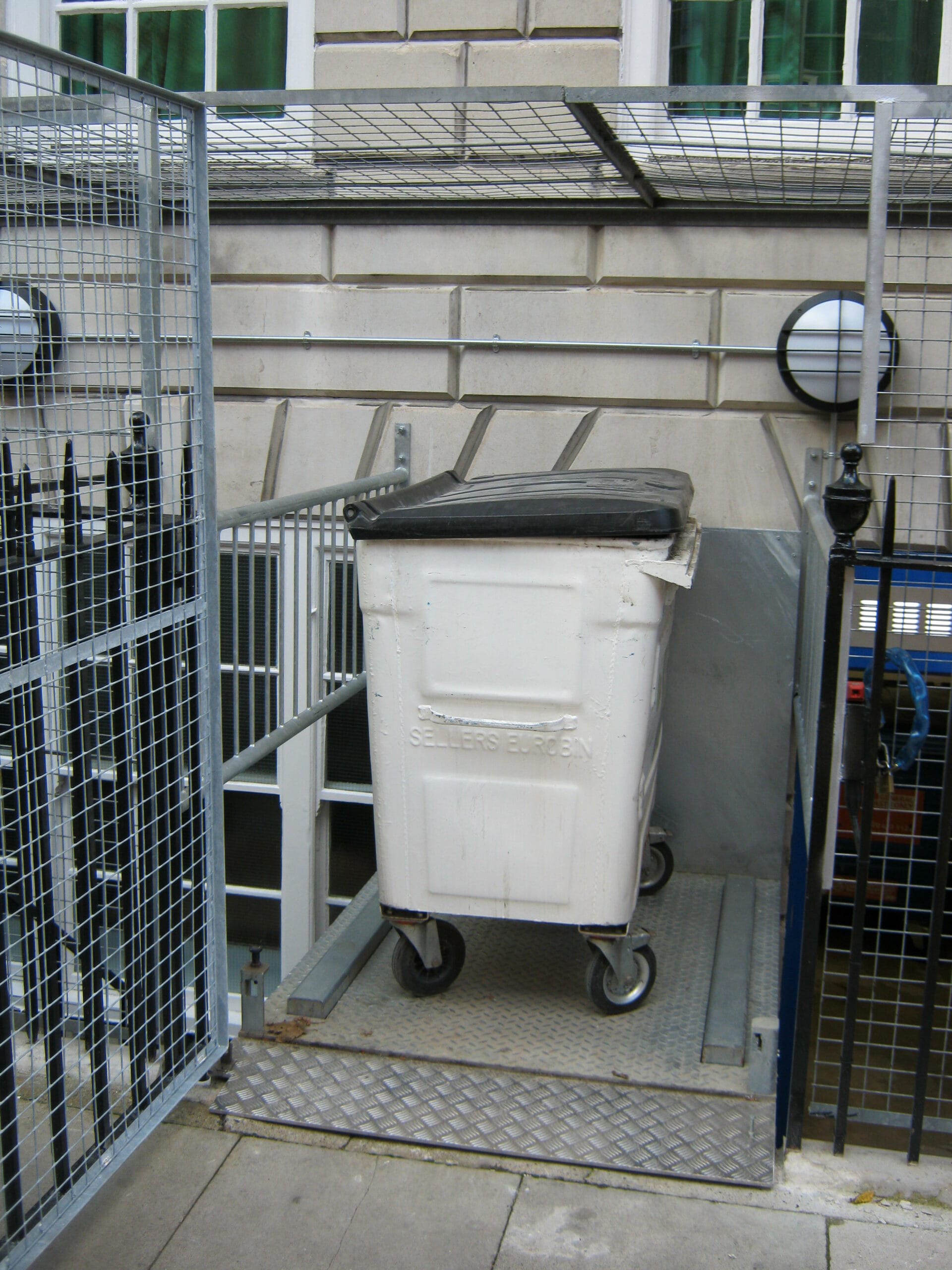

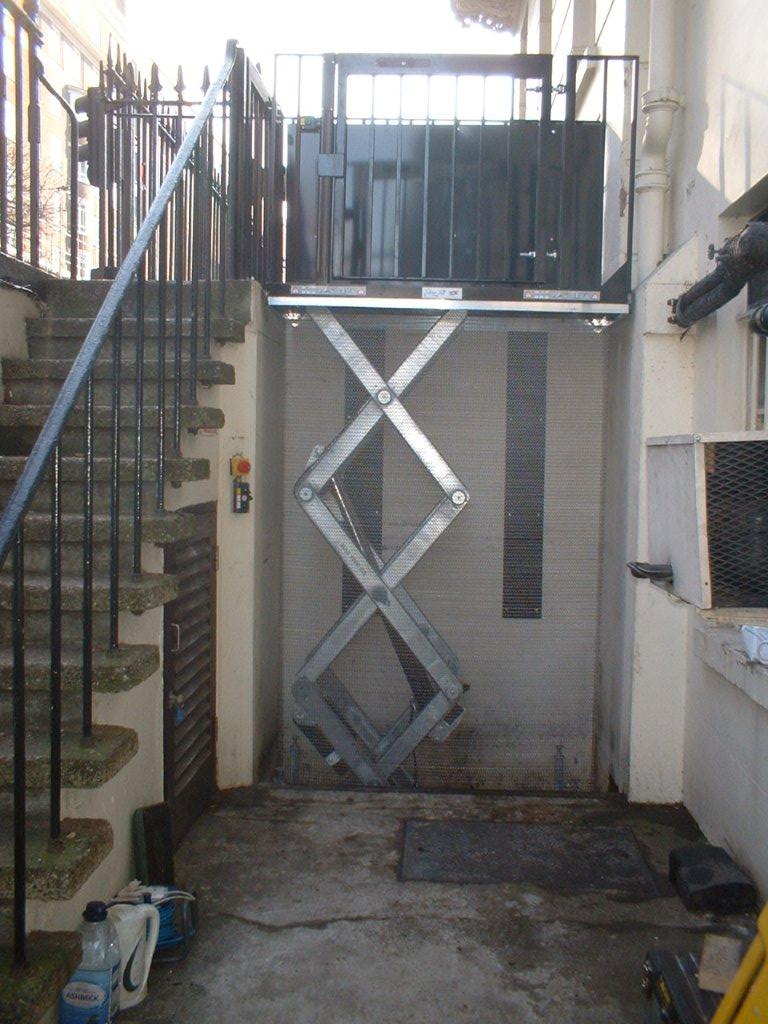

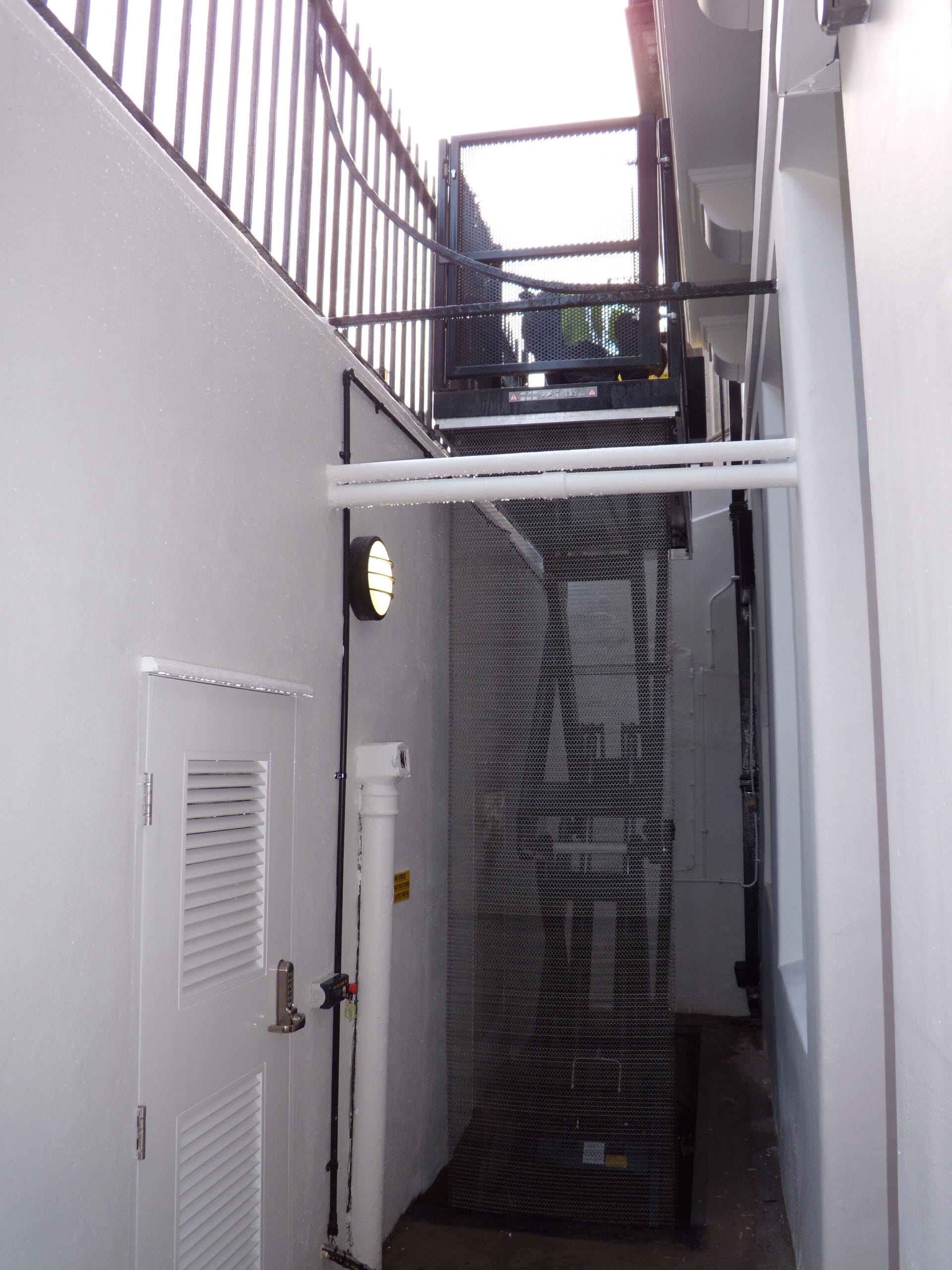

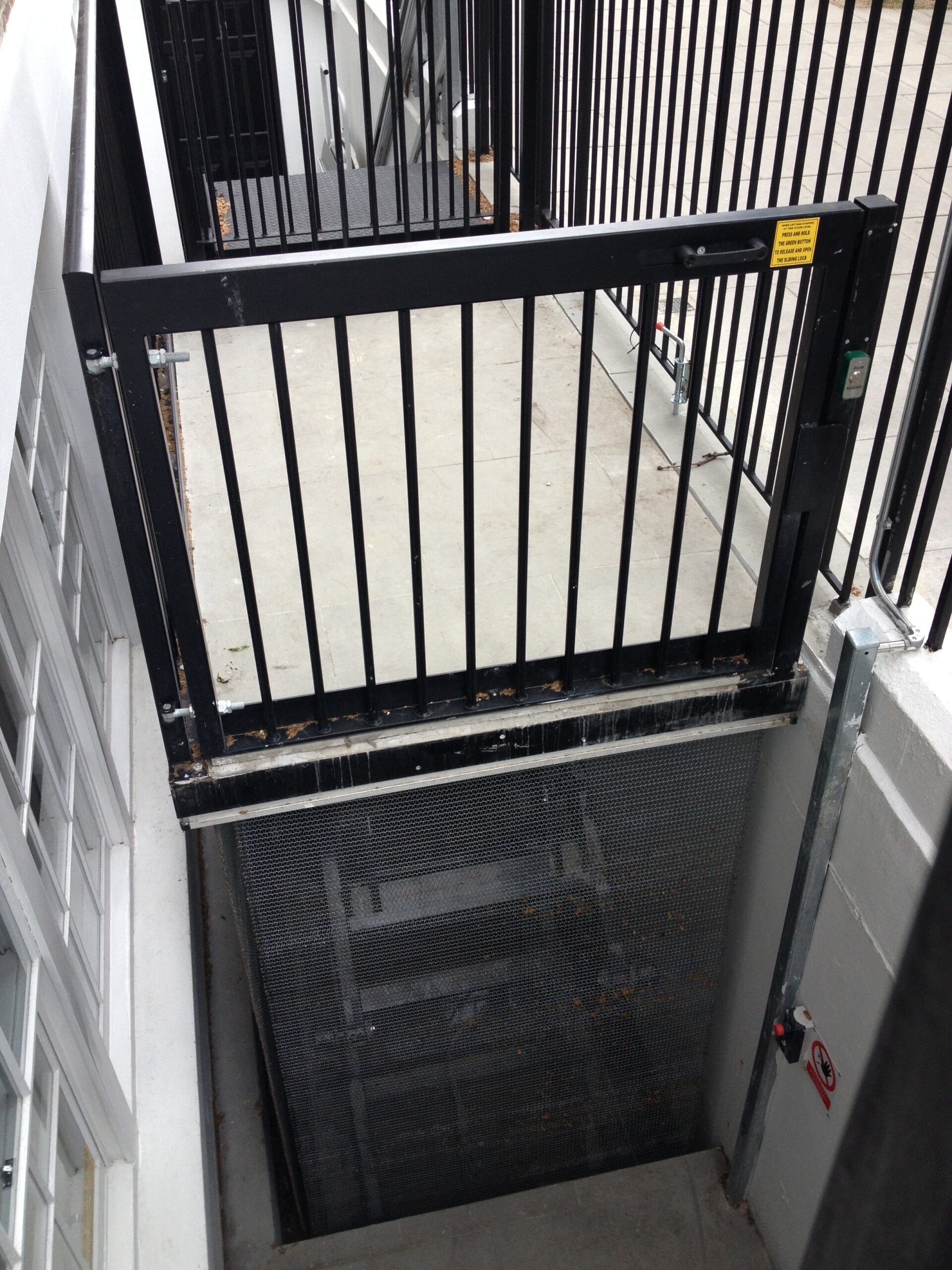

Stylishly solving an age-old problem, our Lightwell Lifts are made to measure and are the perfect solution for serving Basement to Street level and above. Whether you need to provide wheelchair access, receive deliveries or move refuse bins between levels, we are able to offer a customised solution to suit. We will work with you and/or your Architect to ensure that the railing design, colours and finishes complement the local environment.

Lightwell Lift

Technical Details

ApplicationOutdoors
Maximum Travel6m
Minimum Platform Size1050mm x 1450mm
Maximum Platform Size2000mm x 3000mm
Rated load10,000kg
Pit DepthDependent Upon Lifting Height & Platform Size
Travel Speed0.15 m/sec
HeadroomN/A
Entrance Configuration(s)Same Side / Through Access / Adjacent Entry
Door Type(s)Single Swing
Flooring Type(s)Checker Plate / Clients Own Flooring
Lift Colours / FinishesRAL colour of your choice
Internal FinishesN/A
Fixing Method(s)Pit Mounted
Power Supply Requirement220v Single Phase or 415v 3 Phase
ConformityEuropean Machinery Directive
Country of ManufactureGreat Britain
