Description

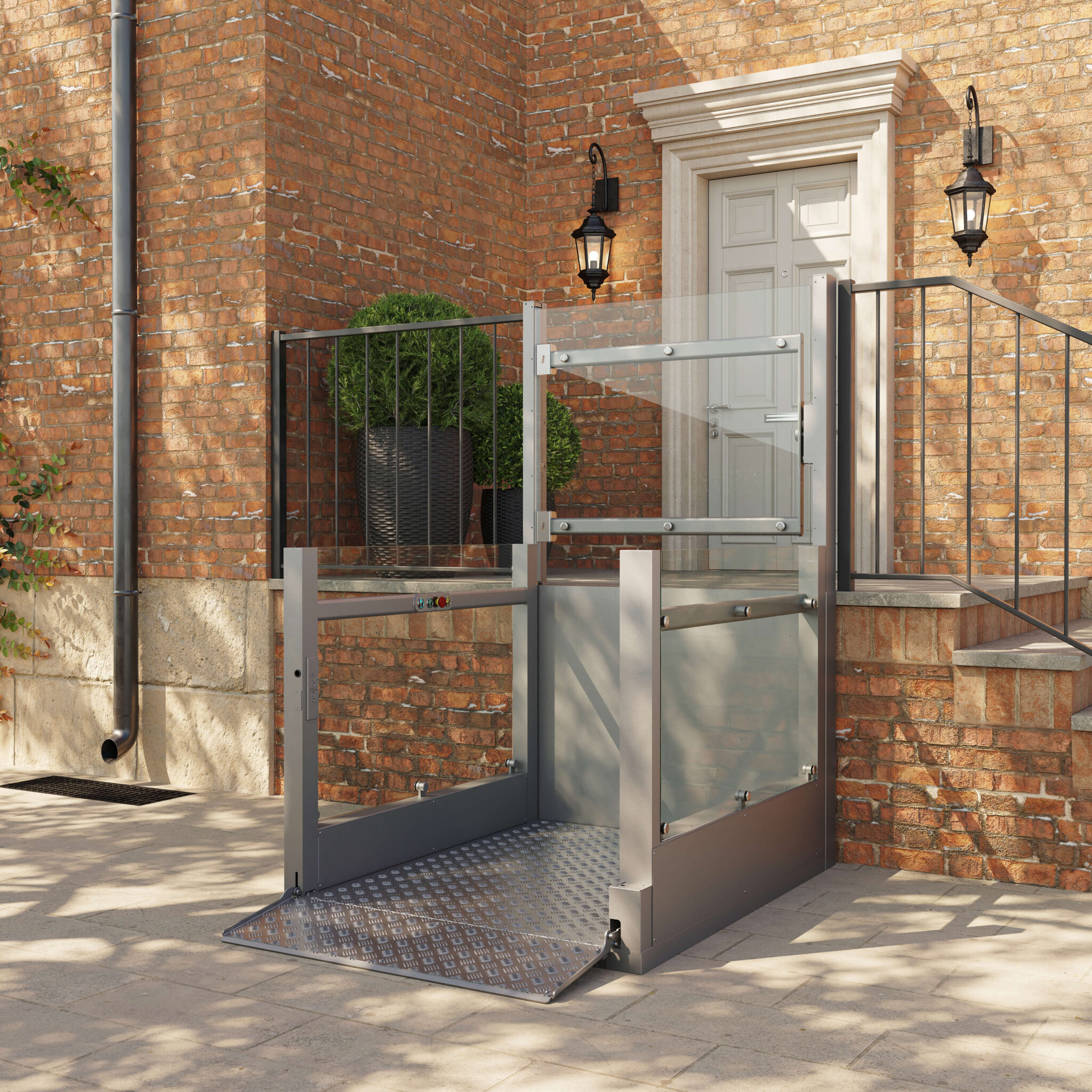

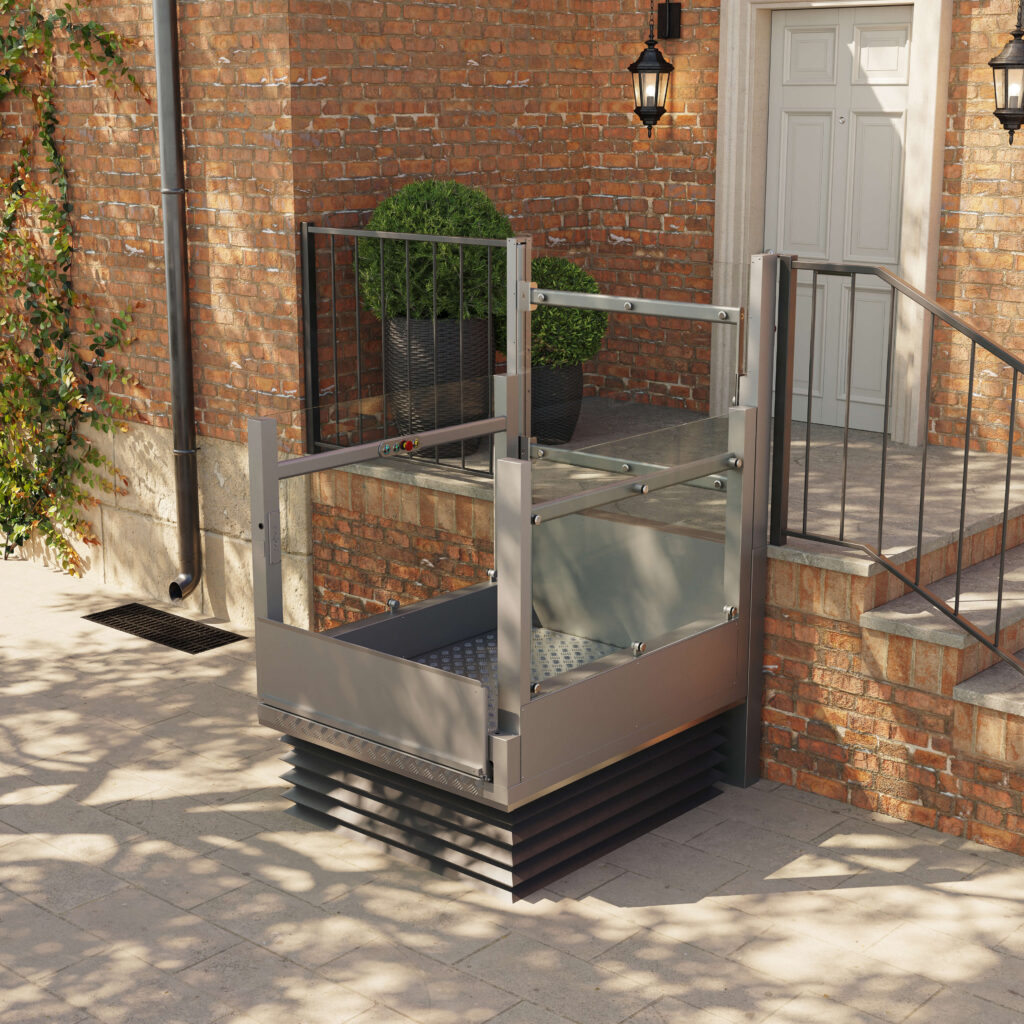

Surgo Step Lift: indoor and outdoor accessibility for home and commercial use.

The Surgo Step Lift is a practical and stylish accessibility solution designed for both indoor and outdoor installation. Its contemporary appearance combines glazing with a clean aluminium silver finish, making it equally at home in residential and commercial settings.

Safe, reliable and straightforward to operate, the Surgo Step Lift provides smooth travel between two levels. Its hydraulic-drive and scissor-frame platform use advanced technology to ensure quiet, consistent performance.

Installation is completed within a day, with no costly building work or structural alterations required. The integrated design removes the need for a separate control unit, as the pump unit is housed within the lift itself, keeping the overall footprint neat and unobtrusive.

The Surgo Step Lift offers genuine design flexibility to suit a wide range of spaces and accessibility requirements. It is available in three platform sizes and five configurations, including through entry, angled entry and bridging steps. A choice of finishes and optional extras, including automatic upper and lower gates, autodialler and voice annunciation, allow customers to tailor the lift to their specific needs.

The Surgo Step Lift provides a disability access solution for:

  • Homes with split-level floors
  • Front and back door step entrances
  • Raised patios, outdoor terraces and gardens that have split-levels
  • Public buildings and commercial spaces requiring accessibility compliance
  • Historic and listed buildings that require improved accessibility

Standard and Optional Features

Standard Features

Compact design

  • Durable protective bellows
  • Anti-slip flooring
  • Easy to use emergency lowering system
  • Improved IP 67 rated switching (waterproof)

Integrated pump unit

  • Reduced vandalism risk
  • No separate control or pump location

Easy installation and service access

  • 1/2 day installation
  • Low maintenance with easy access
  • Can be relocated

Optional Extras

Half Height Doors

  • Automatic upper and/or lower half height doors
  • On board ramp

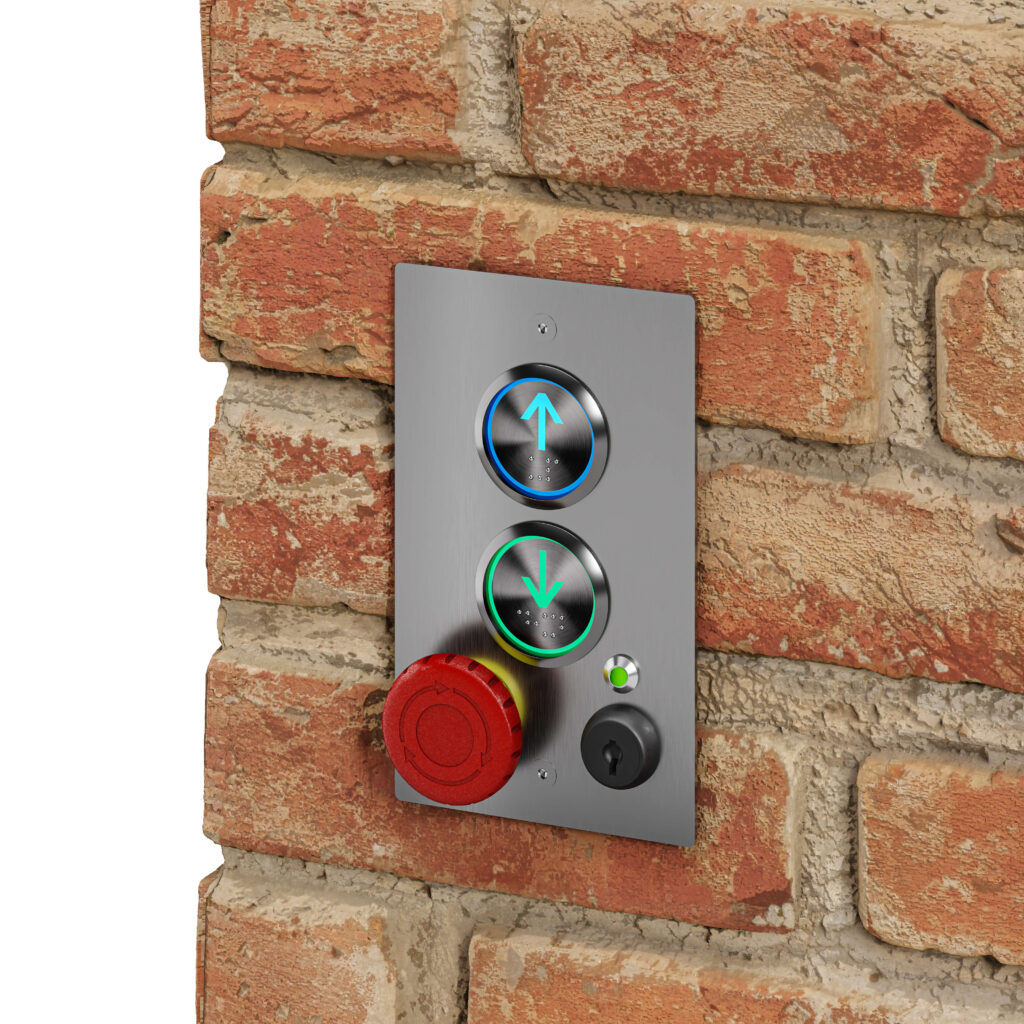

Controls

  • Full braille controls
  • Autodialler Alarm
  • Keyswitch
  • Isolation switch
  • Remote controls
  • Full controls at serviced floors
  • Stainless steel call post

Find out more about the Surgo Step Lift

Surgo Step Lift

Technical Details

ApplicationIndoors & Outdoors
Maximum Travel1m / 2 stops
Minimum Platform Size800 x 1400mm
Standard Platform Size900 x 1400mm
Maximum Platform Size1100 x 1400mm
Rated load280kg (std) 340kg (optional)
Platform Access Method (std)Folding Ramp
Pit Depth (optional)60mm
Travel Speed40mm/sec max
HeadroomN/A
Configuration(s)Through Entry, Adjacent Entry or Bridging Steps
Door Type(s)Single Swing (Manual or Automatic)
Flooring Type(s)Standard: Vinyl (indoors) Aluminium Anti-slip Flooring (outdoors)
Lift Colours / FinishesStandard: RAL 9007 Grey Aluminium. Optional: Custom RAL Colours
Fixing Method(s)Floor Mounted and at Threshold
Power Supply Requirement220v Single Phase, 13 amp
Design & Manufacturing StandardBS 6440:2011; Machinery Directive 2006/42/EC
Country of ManufactureUnited Kingdom
