Description

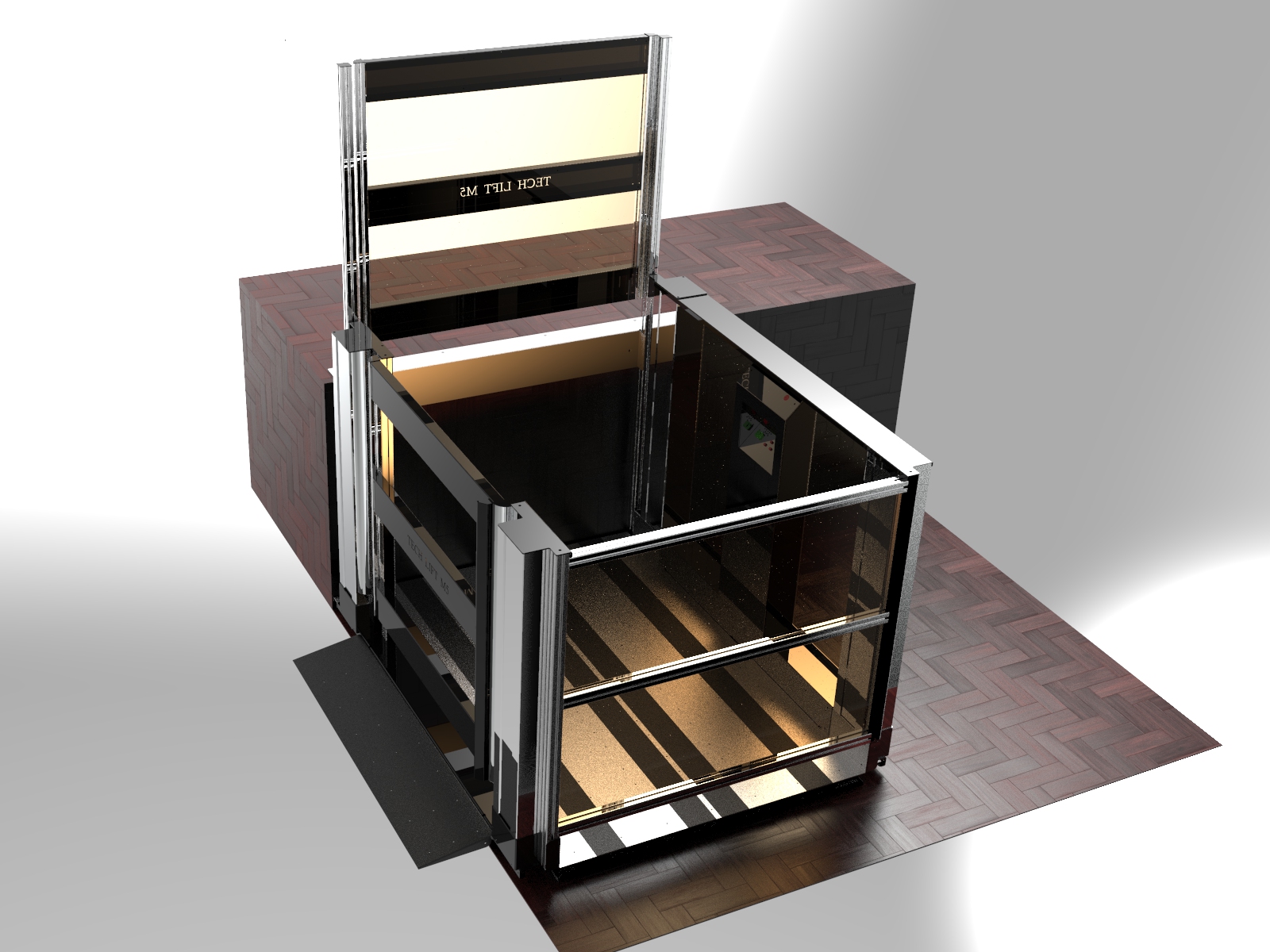

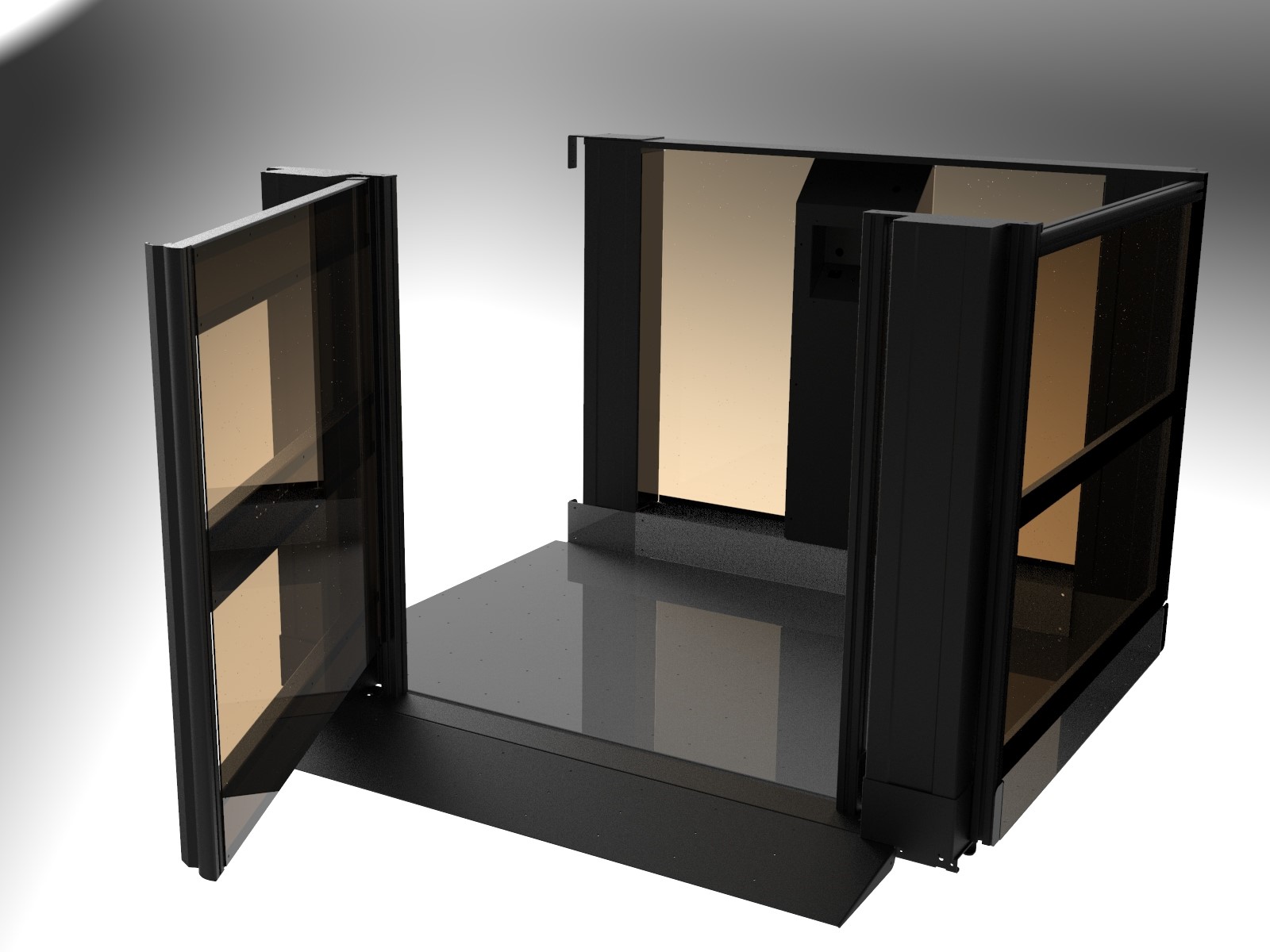

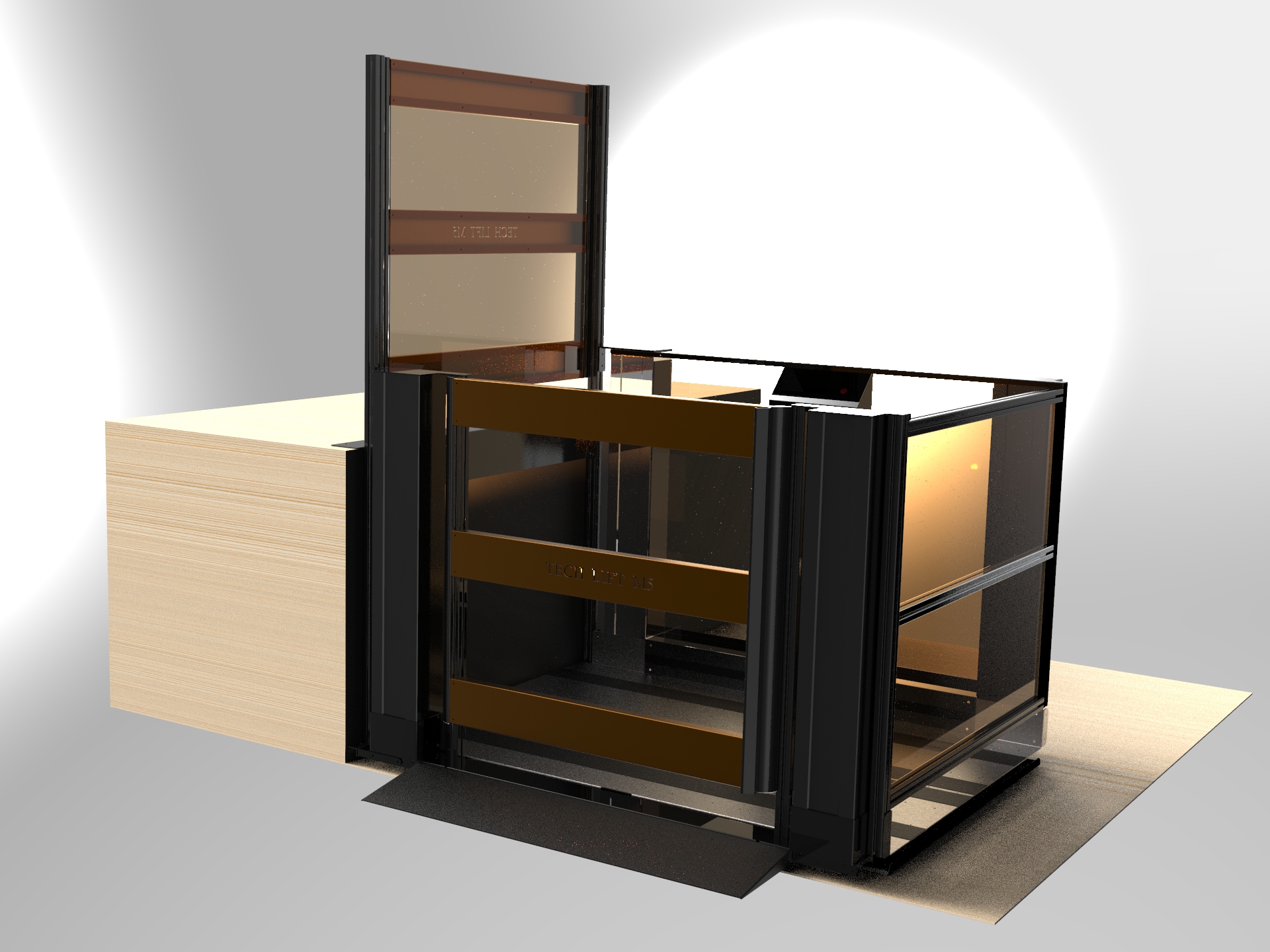

The most versatile adjacent entry model of steplift available today. Based on our hugely popular Tech Lift M4 open platform lift, the M5 has its doors at 90 degrees to each other (often referred to as adjacent access or side access).

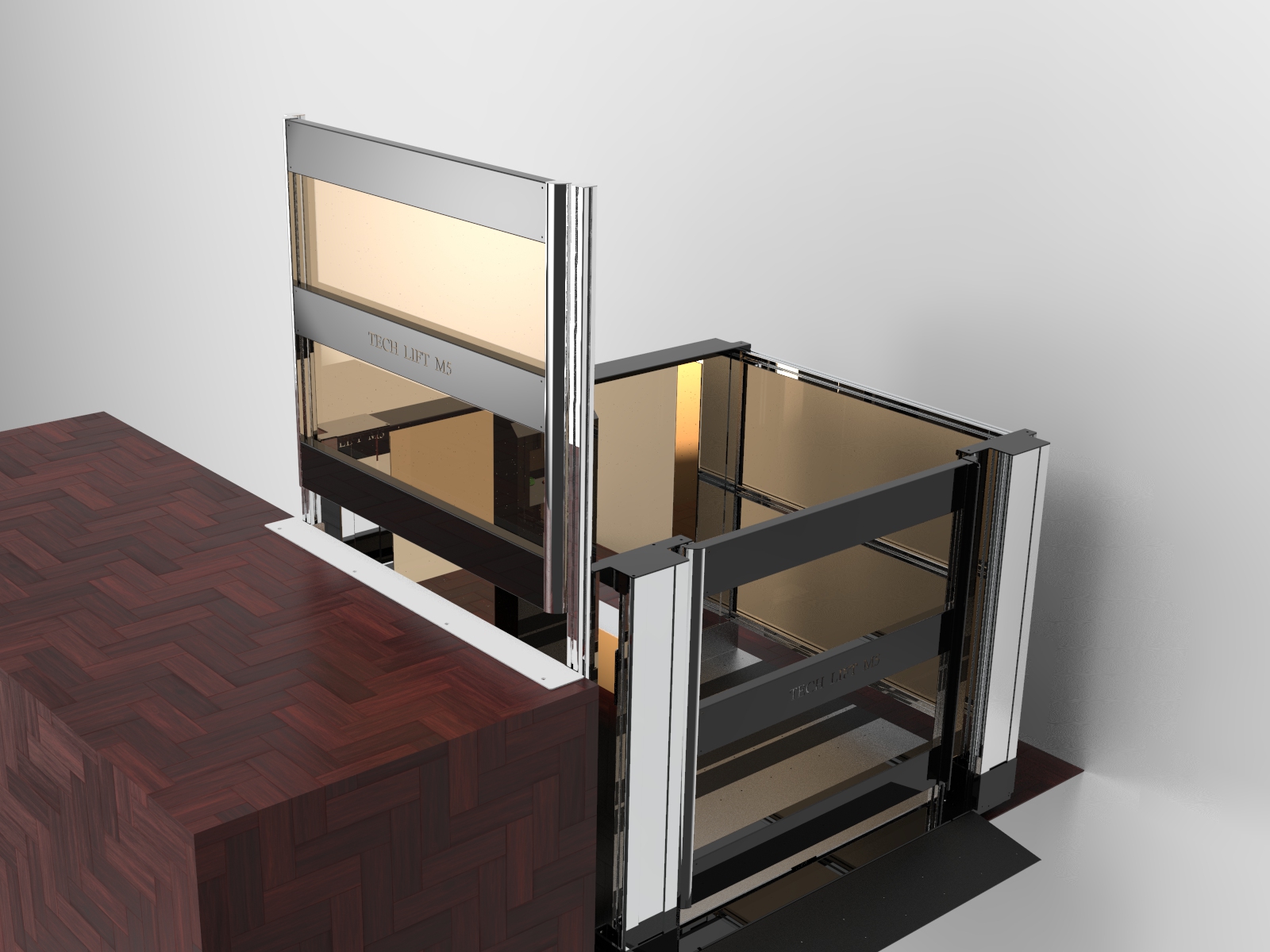

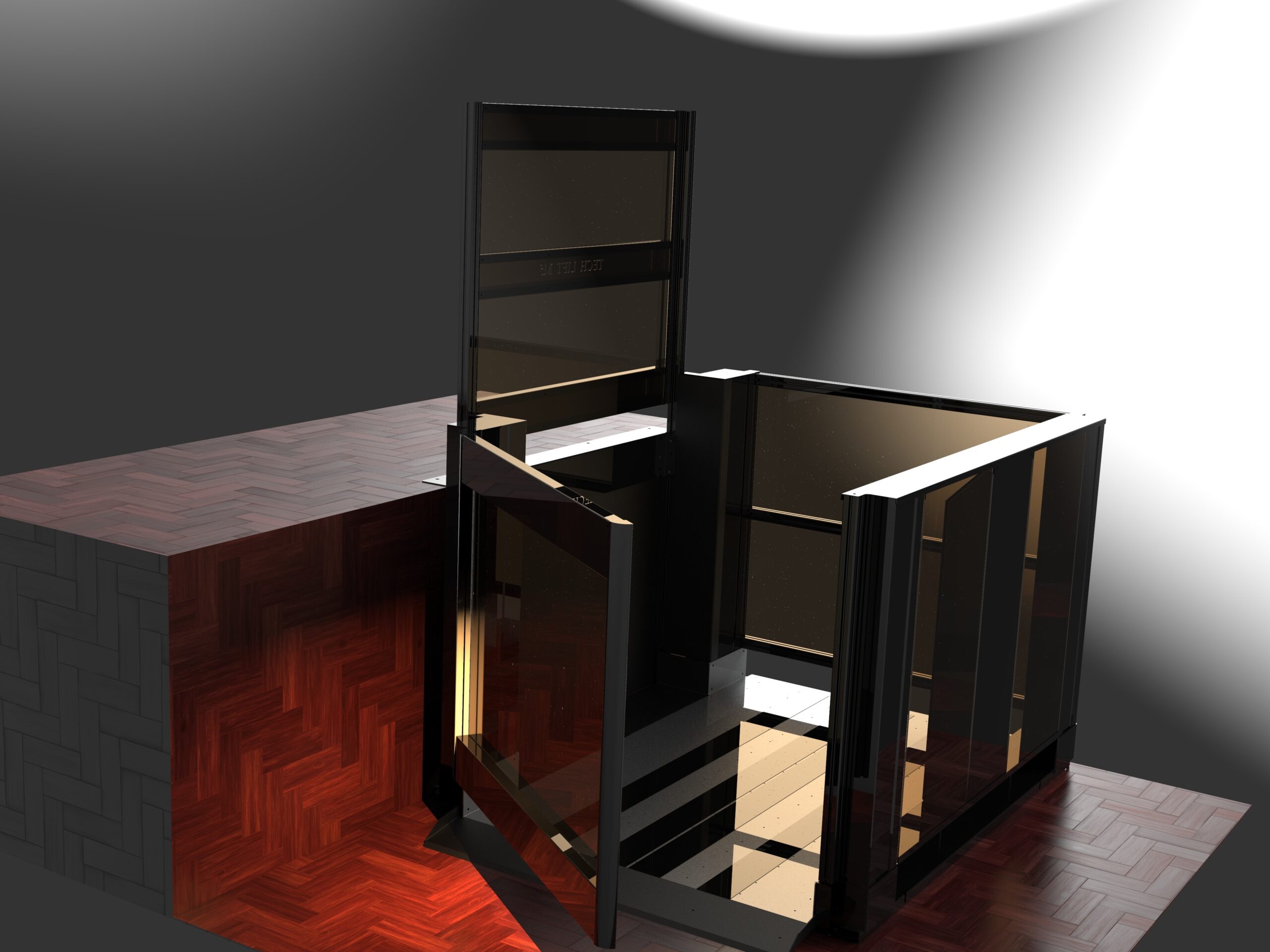

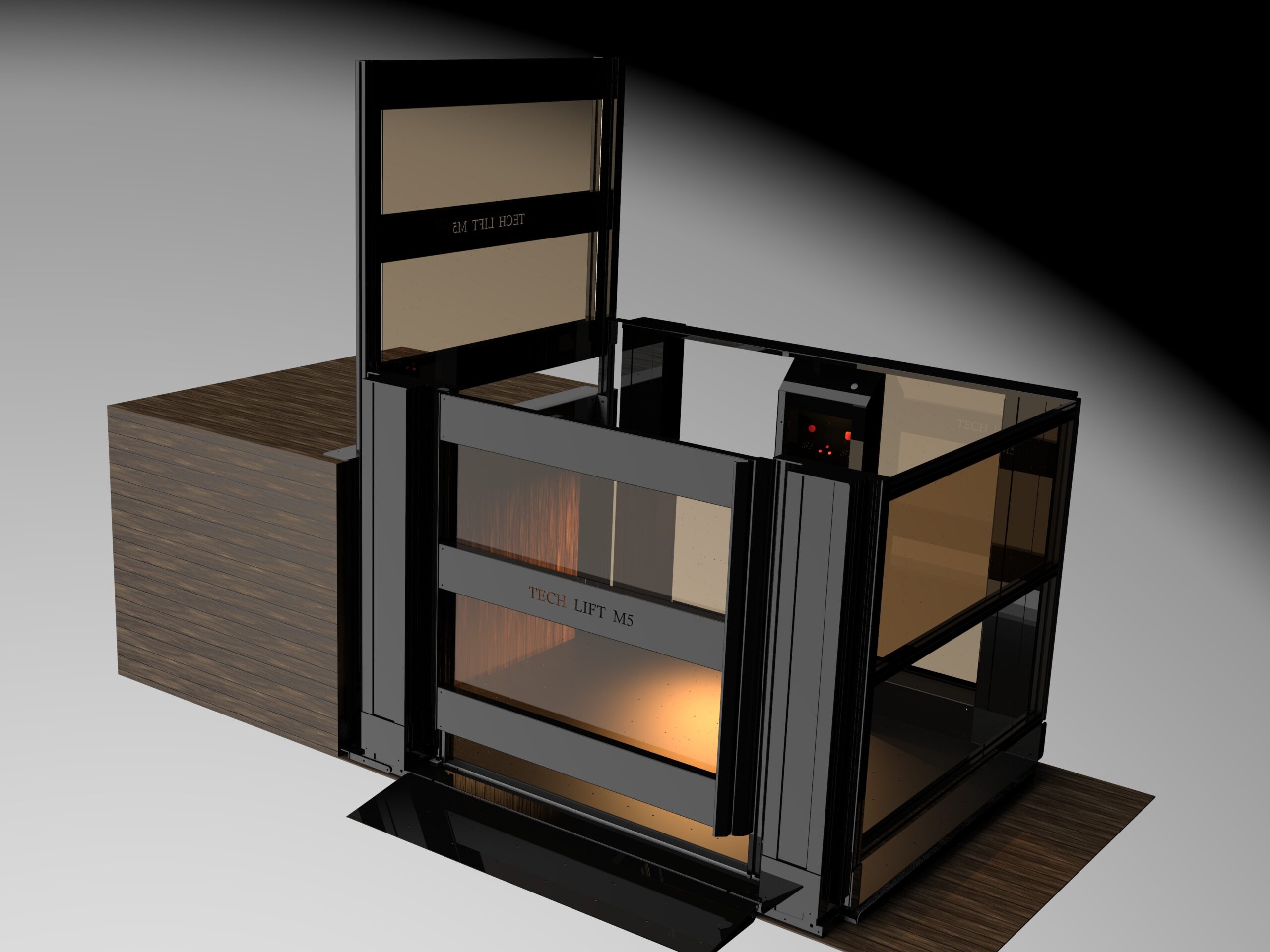

So, what makes the M5 unique? To suit the layout and constraints of your installation space, it is possible to have the adjacent door either at the lower level or the upper level. In other words, you can have the lift in either landscape or portrait orientation. The Designers have listened carefully to our customers, especially those requiring wheelchair access. The general consensus is that it is often difficult to turn through 90 degrees on a platform lift. To overcome these difficulties, the M5 has been designed with a larger than average platform size of 1100mm x 1650mm and offers a clear door opening at each landing of 1020mm.
With a carrying capacity of 400kg, the Tech Lift M5 raises on four telescopic legs up to a maximum height of 1500mm (59 inches approx). This sleek, self-contained design means that there is no need for any specialist building work. All that is required is a flat level base, a plumb vertical face and a power supply – we will do the rest.
