Description

The perfect solution for providing disabled access to split levels, raised patios, mobile homes etc. With a lifting height of up to 500mm high and a lifting capacity of 250kg this little Steplift typically takes 1-2 hours to install and can easily be relocated / reused in another location. The Tech Lift 500 steplift is constructed of aluminium, is extremely rigid and yet weighs a mere 51kg.

See Technical DetailsDownload Brochure (opens in new tab)
a set of stairs leading up to a building.
a metal table sitting on top of a wooden platform.

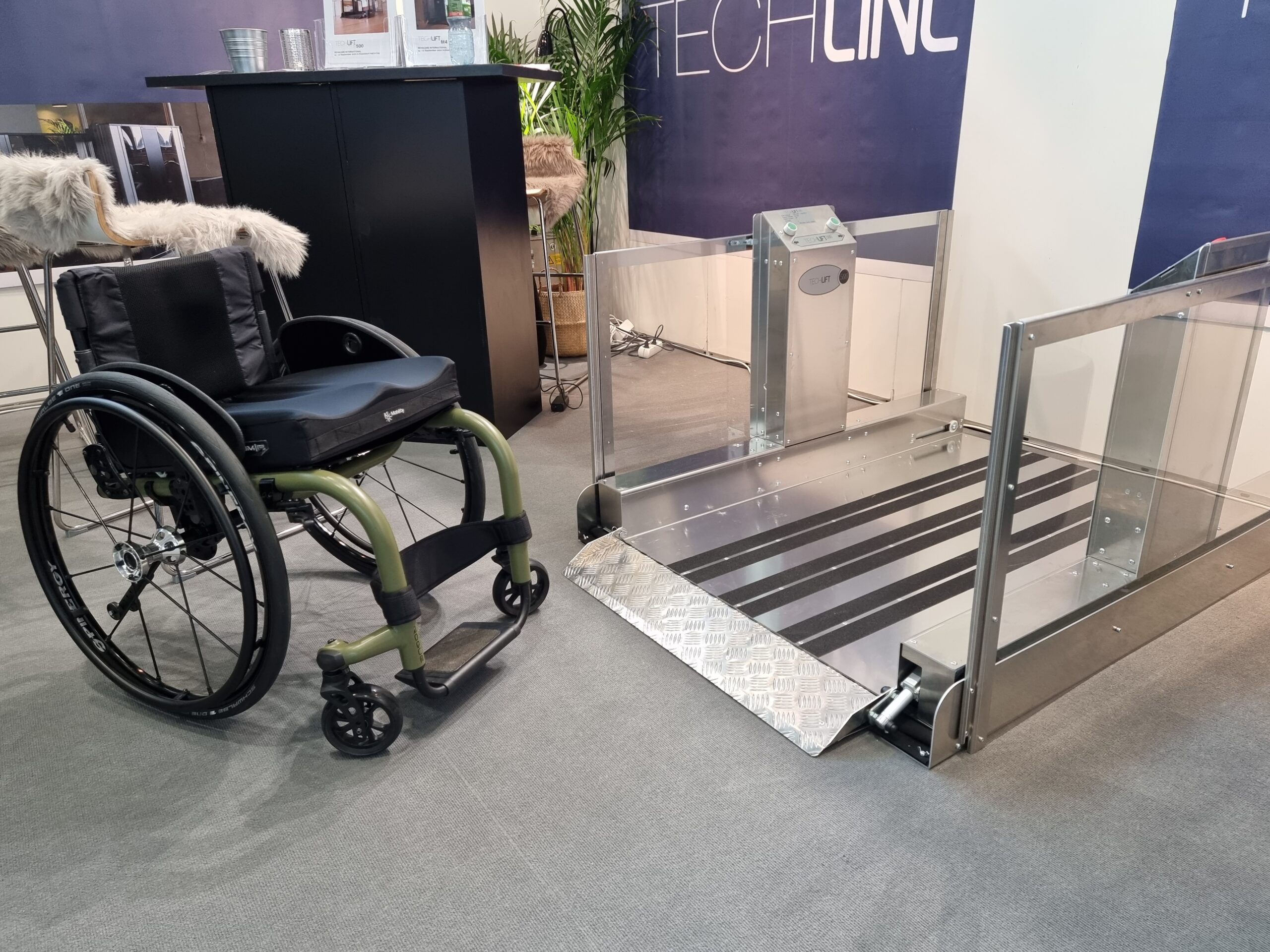

a wheelchair sitting on the ground next to a ramp.
a metal bench sitting in front of a blue door.
a metal bed frame sitting on top of a hard wood floor.
a metal stair case sitting on top of a hard wood floor.
a set of stairs with railings and handrails.
a metal and glass counter in a room.
a room with a couch, chair and a window.

Ultra Light Weight Open Style Lift

Technical Details

Enquire Now
ApplicationIndoors & Outdoors
Maximum Travel0.5m / 2 stops
Minimum Platform Size800mm x 1250mm
Maximum Platform Size800mmx 1250mm
Rated load250kg
Pit DepthN/A - Powered Ramp on Platform
Travel Speed25mm/sec
HeadroomN/A
Entrance Configuration(s)Through Access
Door Type(s)Single Swing
Flooring Type(s)Non Slip
Lift Colours / FinishesAluminium & Stainless Steel (natural)
Internal FinishesN/A
Fixing Method(s)Floor Mounted
Power Supply Requirement220v Single Phase
ConformityEuropean Machinery Directive
Country of ManufactureSweden
