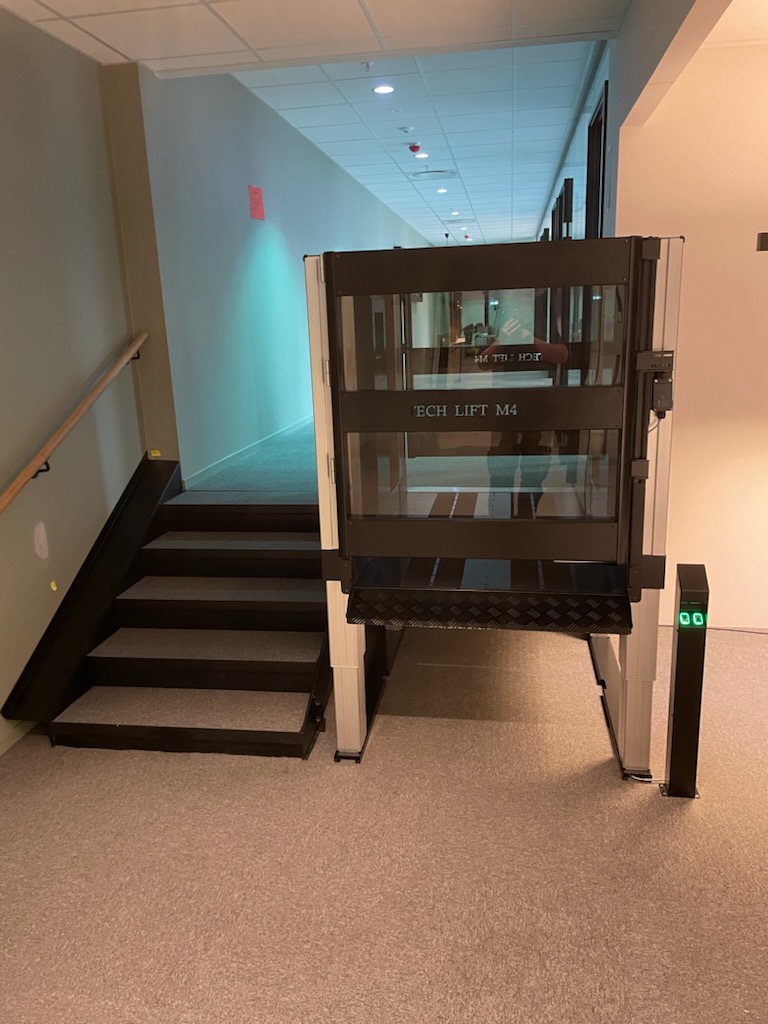

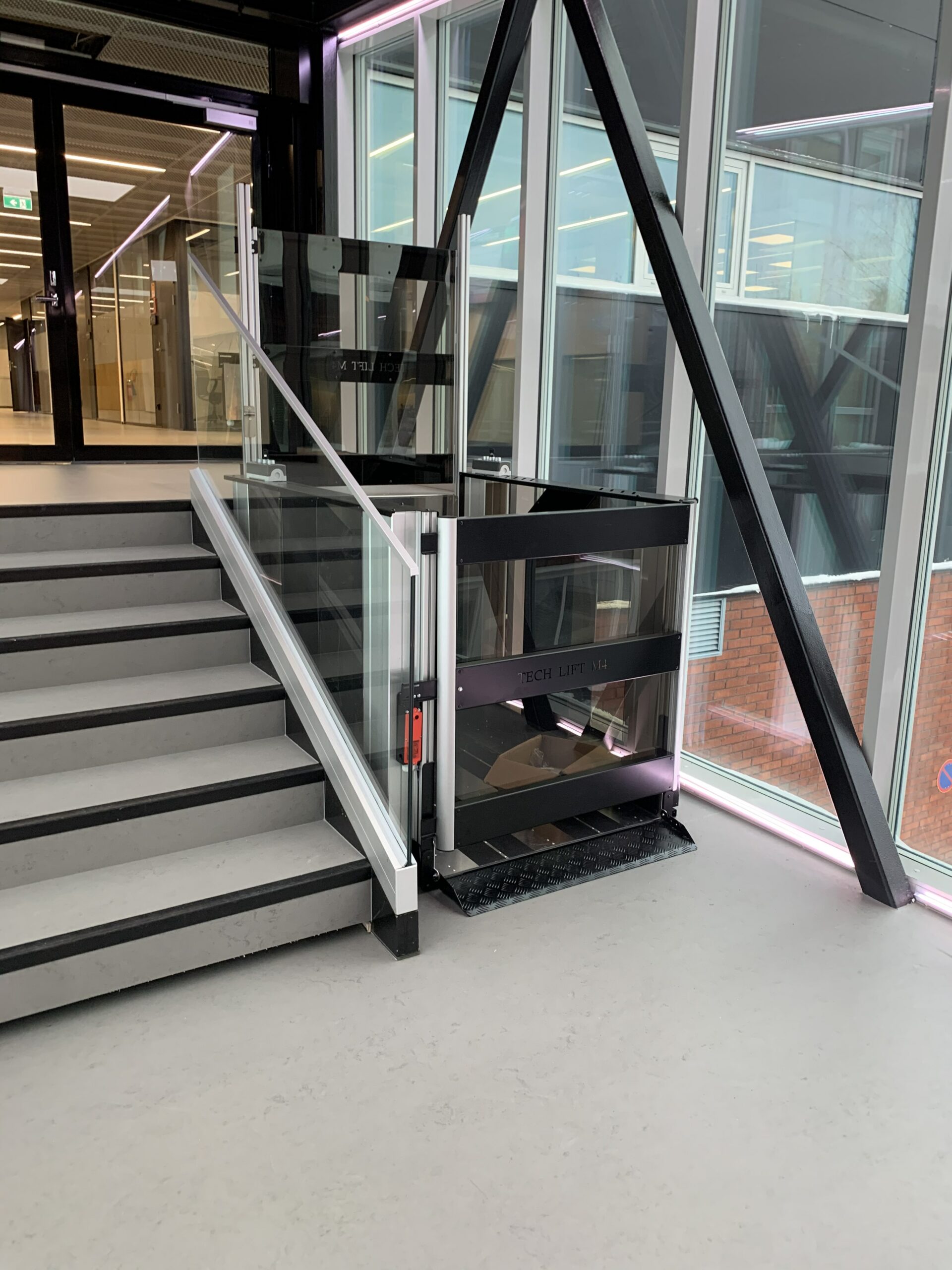

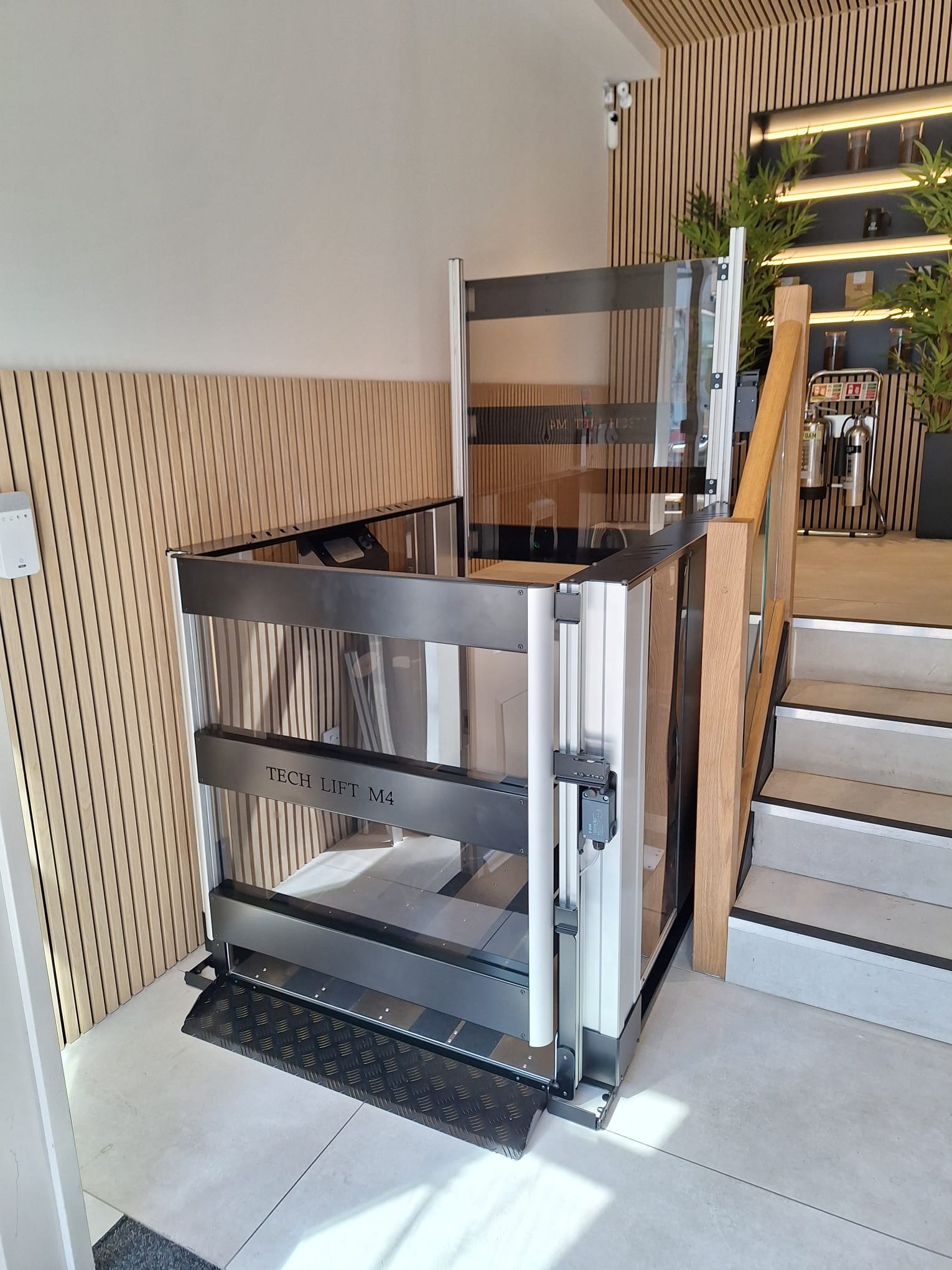

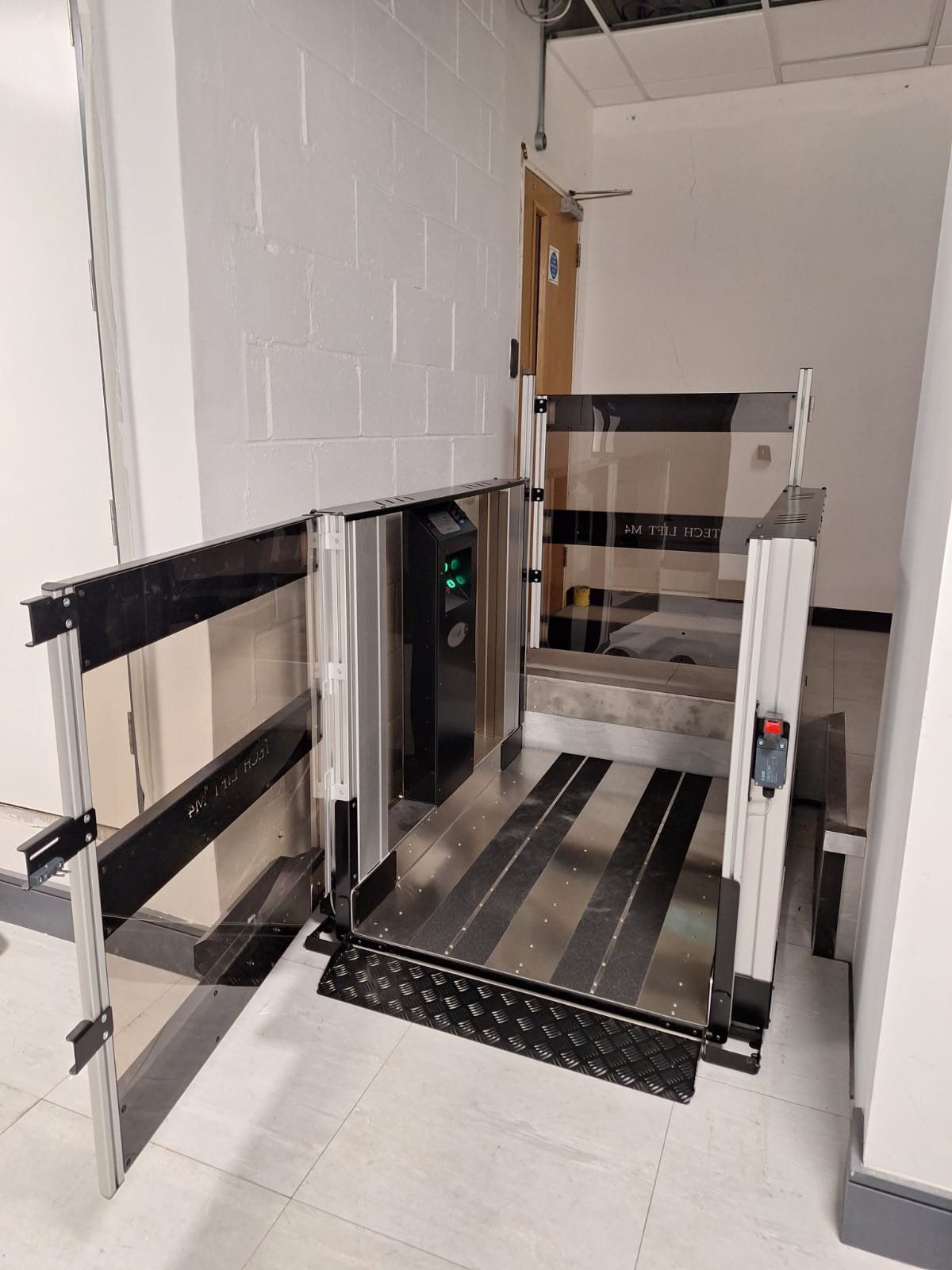

Step lift with a seamless glazed door and a silver finish.

Description

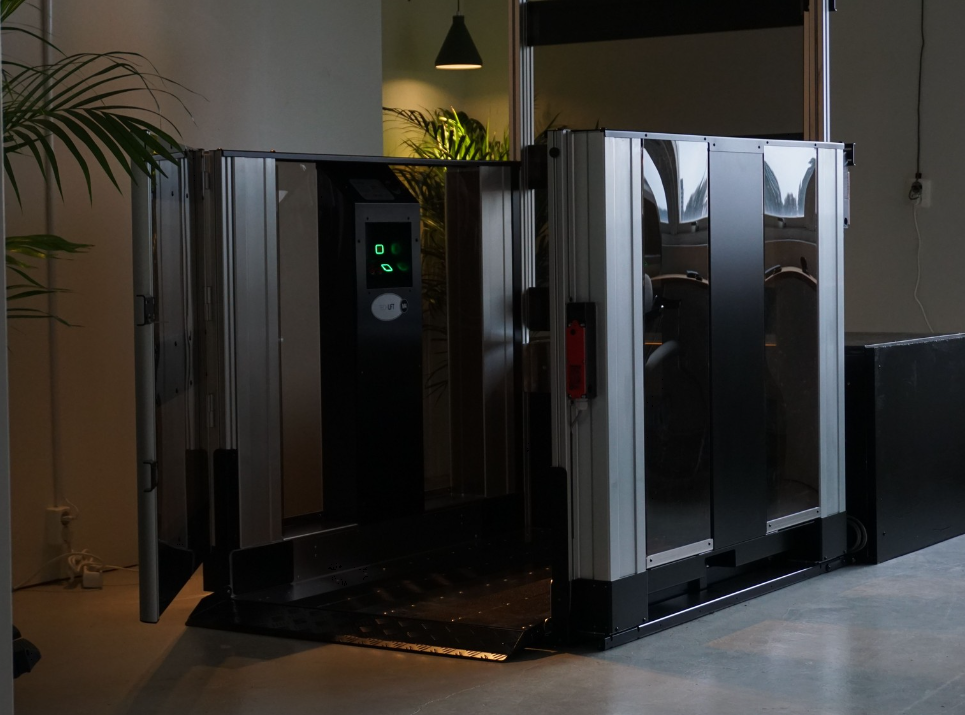

Tech Lift M4: easy to install compact platform lift solution with modern seamless glazed doors

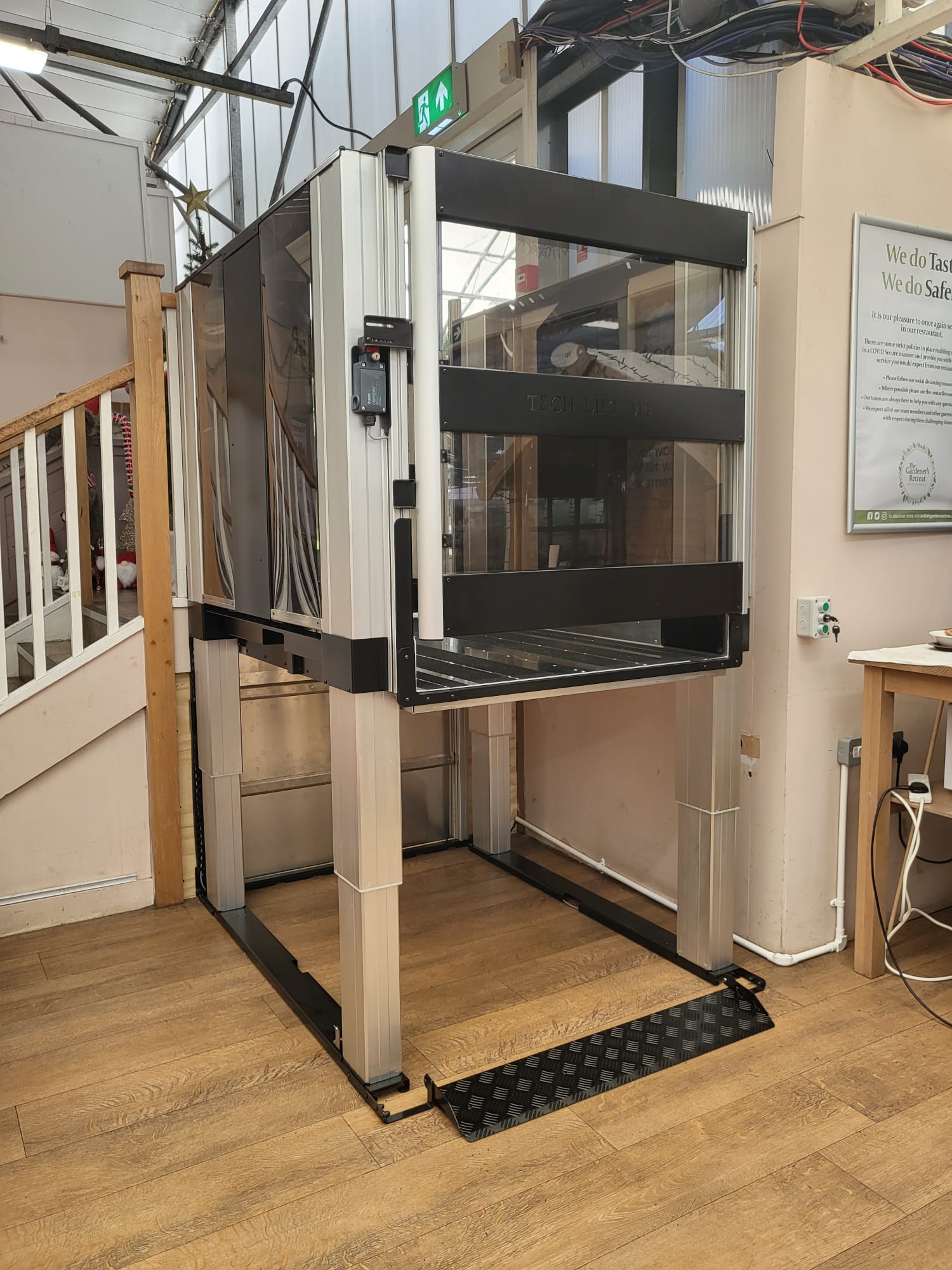

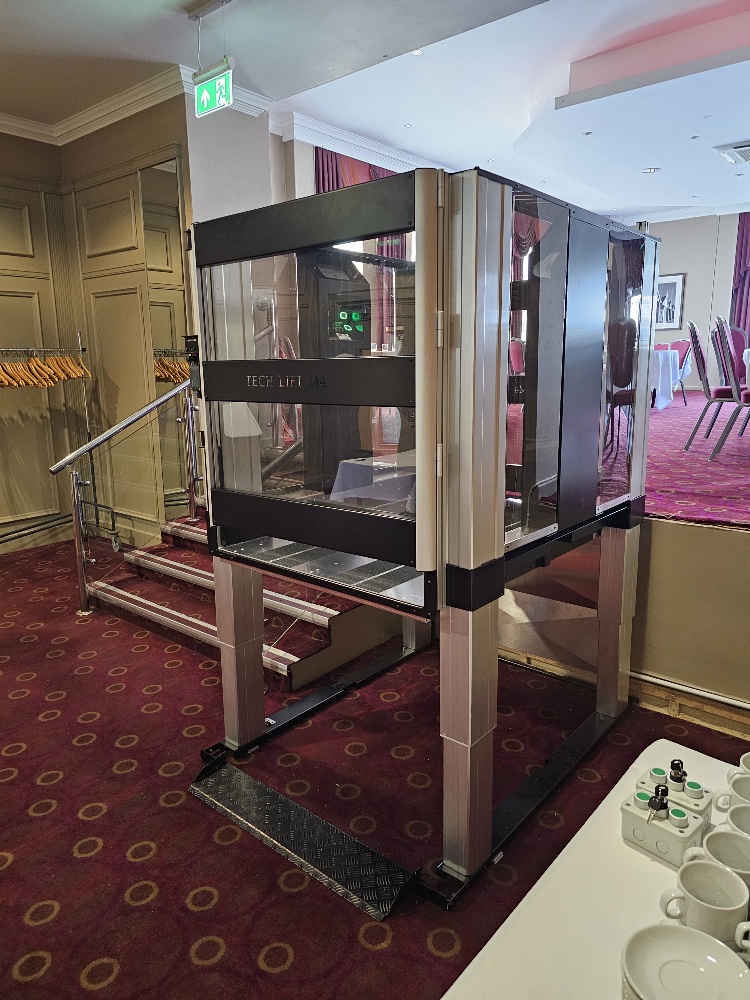

Installing a Tech Lift M4 is a cost-effective way of making outdoor and indoor spaces accessible without having to make structural modifications or carry out building work. This ultra-compact, low-level access lift solution has a maximum travel height of 1.5 metres and comes in three different platform sizes. The intelligent lifting mechanism, which comprises of four telescopic legs, requires minimal floor space, making the Tech Lift M4 ideal for tight spaces and existing building layouts.

Recently upgraded with seamless glazed doors as standard, the Tech Lift M4 combines functionality with elegant aesthetics. Clean architectural lines complement any environment. This contemporary disability access lift, which is suitable for residential and commercial environments, comes in silver or black as standard.

Bespoke Design Features

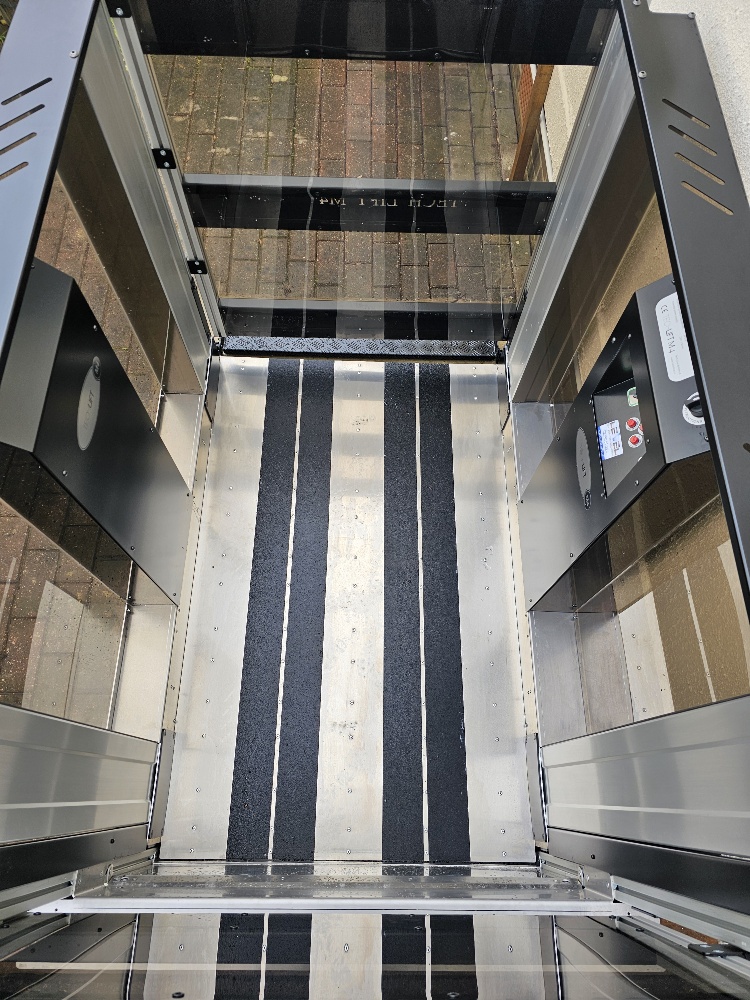

Choose from our full RAL colour range to match your existing décor or branding. The aluminium platform floor has anti-slip strips for added safety and reassurance. The lift doors are manually operated as standard but can be made to open automatically as an optional extra.

The Tech Lift M4 is ideal for:

  • Residential homes with split-level access

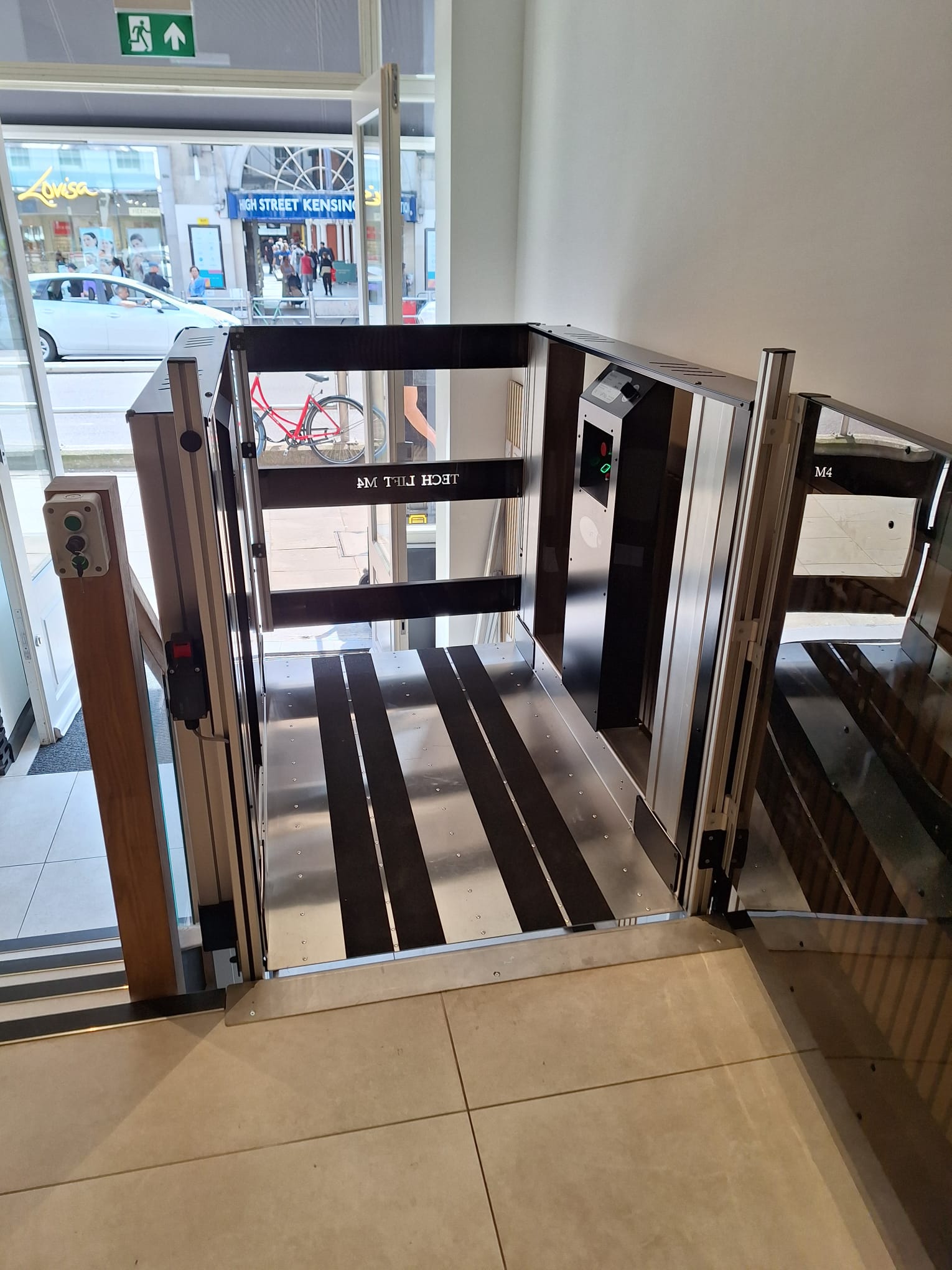

  • Commercial spaces and offices
  • Public buildings requiring accessibility compliance

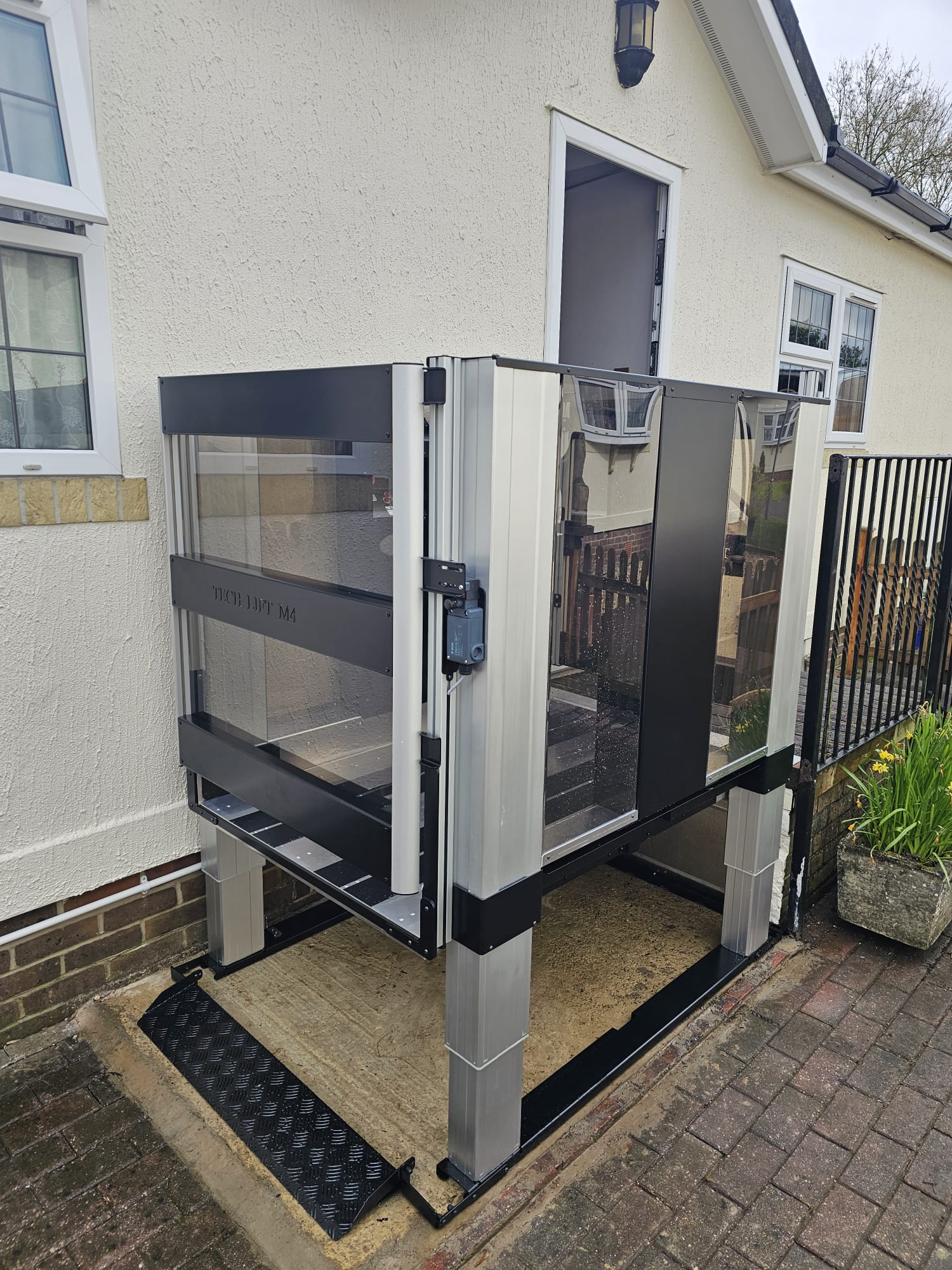

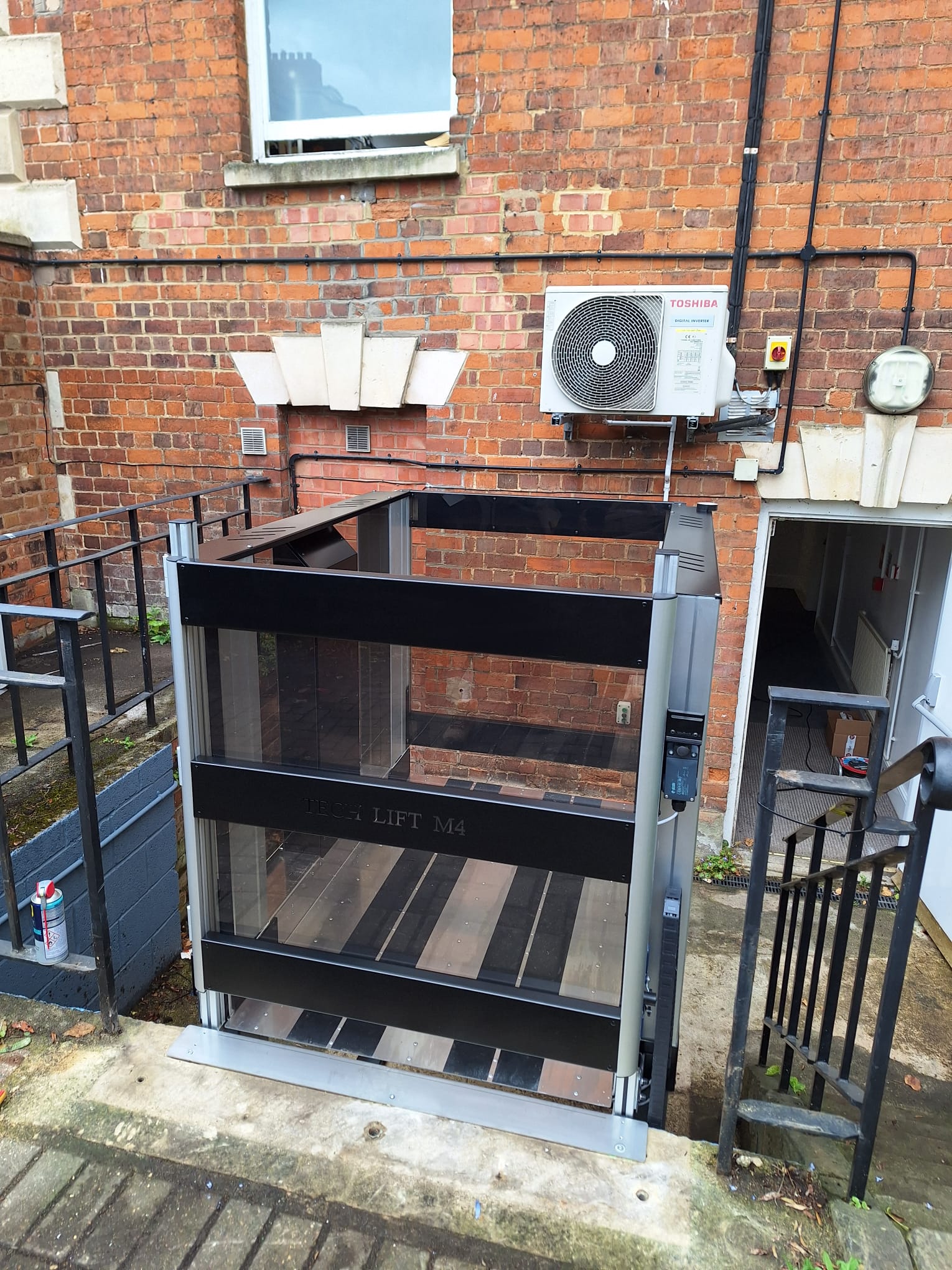

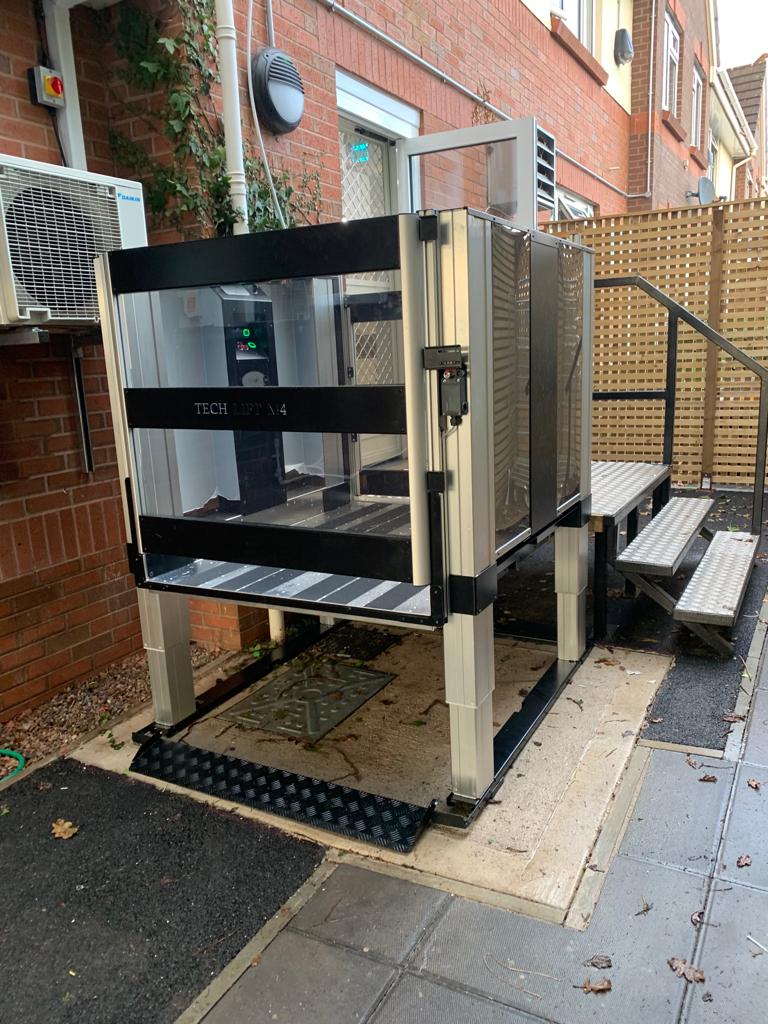

  • Outdoor terraces and garden levels
  • Historic buildings where major alterations are not possible

Tech Lift M4

Technical Details

ApplicationIndoors & Outdoors
Maximum Travel1.5m / 2 stops
Minimum Platform Size800 x 1400mm
Standard Platform Size900 x 1400mm
Maximum Platform Size1100 x 1400mm
Rated load400kg
Platform Access Method (std)Fixed Ramp
Pit Depth (optional)40mm
Travel Speed40mm/sec max
HeadroomN/A
Entrance Configuration(s)Through Access
Door Type(s)Single Swing (Manual or Automatic
Flooring Type(s)Aluminium with anti-slip strips
Lift Colours / FinishesBlack RAL9005 (std) or Silver Interpon 700AS (std) or Optional RAL colour of your choice
Internal FinishesN/A
Fixing Method(s)At threshold only
Power Supply Requirement220v Single Phase, 13 amp
ConformityEN-81-41:2010
Country of ManufactureSweden
